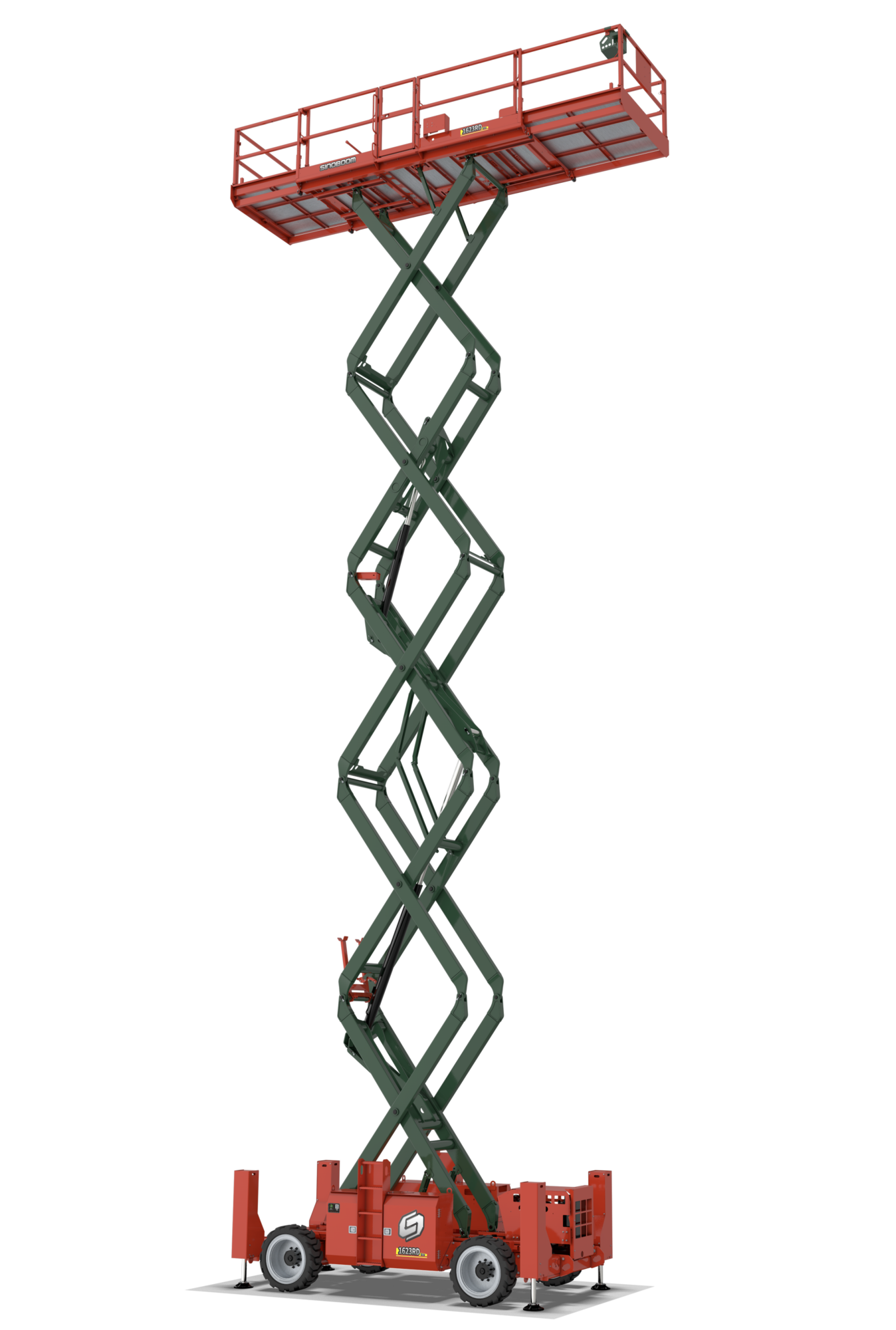

Sinoboom Diesel RT Scissor Lift 18.2m – Capacity 680kg
The 1623 RD is ideal for constructions sites, industrial applications, landscaping& arboriculture, the energy sector, mining and quarry.
With a huge 7 person / 680kg extra capacity, the Sinoboom 1623RD rough terrain diesel scissor lift has a working height of 18.2M with 4WD for enhanced mobility and performance on steep and rugged terrain with a maximum gradeability of 40% and hydraulic outriggers!
Features
- Powerful platform capacity for unprecedented efficiency
- Two-way extendable platform, spacious working platform
- Wide-angle tilt, one-click outrigger levelling
- Stable movement, copes well with potholed ground
- Integrated pipeline assembly, convenient for troubleshooting
- Double-door design for easy maintenance, spacious area for maintenance
- Drawer-type engine compartment, easy maintenance
- Forklift pockets and lifting points
- Proportional control
- Manual storage box
- Flashing beacon
- Emergency lowering system
- Emergency stop
- Electrophoretic painting
- Tilt protection system
- Foldable guardrail
- Non-marking tyres
- Track unit connector
- Overload sensing system
- Oscillating axle
- Fault diagnosis system
- White noise alarm
- Dual extension deck
- Pipe rack ready
Options & Accessories
- AC power to platform
- Platform work light
- Battery isolator
- EQSS/Protector
- Pipe racks
| Brand | Sinoboom |
|---|---|
| Product Code | 1623RD |
| YR Connect Learn more | Built in |
| YR Connect Device Type | EHM101-4G | Quick Connect |
| Fuel Type | Diesel |
| Machine Length Stowed | 4.88 m |
| Machine Height Stowed | 3.21 m |
| Machine Width Stowed | 2.28 m |
| Product Weight | 8780 kg |
| Fuel Tank Capacity | 111 L |
| Working Height Max - Outdoor | 18.2 m |
| Lift Capacity - Extension Deck Extended | 227 kg |
| Platform Height Max - Outdoor | 16.2 m |
| AGM Batteries | 110 Ah |
| Drive Mode | 4WD X 2WS |
| Hydraulic System Capacity | 140 L |
| Elevation Time (Unloaded) | 70~90 s |
| Descent Time (Unloaded) | 45~55 s |
| Tilt Rating (front-to-back/side-to-side) | 2/0.8 ° |
| Turning Radius (Inside/Outside) | 2.2 m |
| Standards Compliance | CE/ANSI/EAS/AS |
| Engine Type | Yanmar 4TNV88-BDFLTC 34.5kW（China 3） |
| Drive Speed Stowed | 6.1 km/h |
| Drive Speed Raised | 1.1 km/h |
| Gradeability | 40 % |
| Maximum Horizontal Extension | 1.5/1.2 m |
| Ground Clearance | 360 mm |
| Platform Capacity | 680 kg |
| Platform Allowable Occupants Indoor | 4 |
| Platform Allowable Occupants Outdoor | 4 |
| Platform Size (L X W X H) | 4.84 m x 1.82 m x 1.1 m m |
| Tilt Rating | 3° |
| Tire Spec Type | 315/55D20 Foam-filled |
| System Voltage | 12 VDC |
| Max Outrigger Levelling (Side-to-side) | 12 ° |
| Max Outrigger Levelling (Front-to-back) | 7 ° |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Sinoboom 1623RD Product Brochure | Product Brochures | |
| Sinoboom 1623 Rough Terrain Electric Scissor Lift Product Brochure | Product Brochures |
This product is covered by the YR standard warranty. You can also read our return policy.
