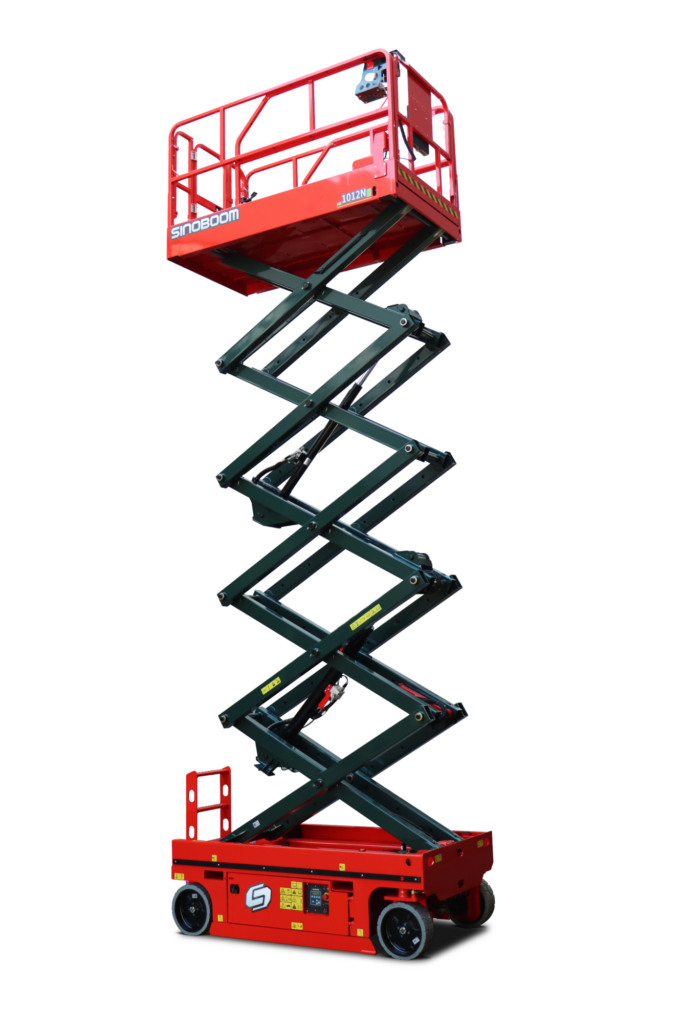

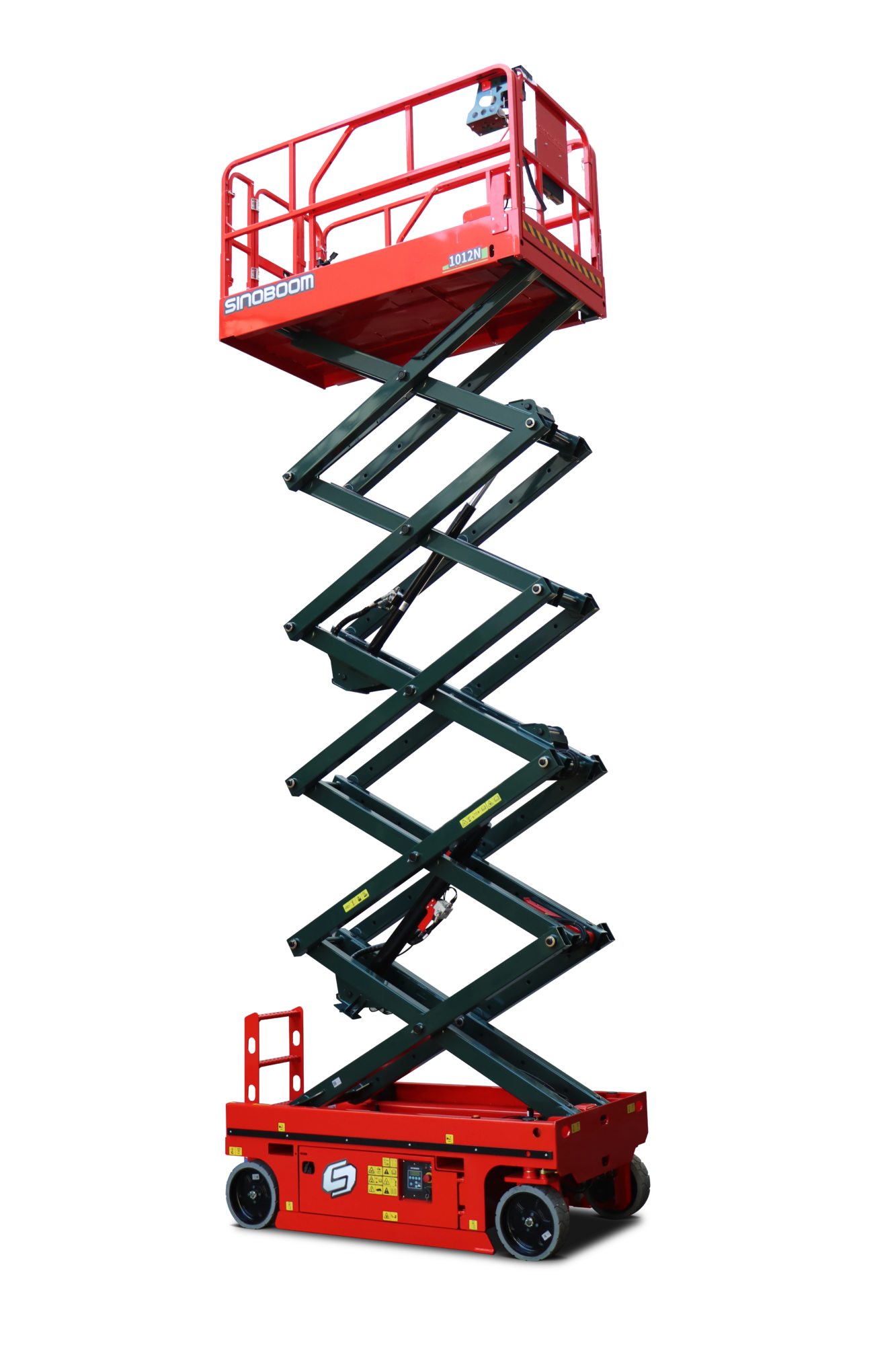

Sinoboom Electric Scissor Lift 12m – Capacity 320kg
The 1012E is ideal for construction sites, warehousing and logistics, facilities maintenance, retail stores, event management, manufacturing plants, airports and hangars.
With a smooth electric drive that is environmentally friendly, this electric scissor lift produces no emissions with reduced noise levels. With an impressive 12M working height and 320kg capacity the 1012E can be used both indoors and outdoors especially in areas with noise and pollution restrictions. Reach significant heights safely and efficiently with excellent stability with the robust chassis and wide scissor design, allowing for safe driving at full height.
Features
- Higher work efficiency
- Environmental protection, zero emissions
- The short design of sliding rail makes debris easy to clean
- Rapid, convenient transport with two-way forklift slot
- Lower cost of ownership with highly versatile parts
- New, wide scissor design, for a more stable working-at-height experience
- Bumper rail and indented sliding rail designed for anti-scratch
- Forklift pockets and lifting points
- Proportional control
- Manual storage box
- Flashing beacon
- Emergency stop
- Emergency lowering system
- Electrophoretic painting
- Tilt protection system
- Foldable guardrail
- Non-marking tyres
- Track unit connector
- Overload sensing system
- Fault diagnosis system
- White noise alarm
- Drivable at full height
- Maintenance-free battery
- Automatic pothole protection
- Bumper rails
- White noise alarm
Options & Accessories
- RCBO
- AC power to platform
- Battery isolator
- Lithium battery
- AC Drive Motor
- Platform working light
- EQSS/Protector
| Brand | Sinoboom |
|---|---|
| Product Code | 1012E |
| YR Connect Learn more | Built in |
| YR Connect Device Type | G5-SD01 | Oyster |
| Fuel Type | Battery |
| Machine Length Stowed | 2.45 m |
| Machine Height Stowed | 2.48 m |
| Machine Width Stowed | 1.17 m |
| Product Weight | 2815 kg |
| Max Limited Gradeability | 25 % |
| Charger Input | 100~240V AC |
| Charger Output | 30A |
| Working Height Max - Indoor | 12 m |
| Working Height Max - Outdoor | 12 m |
| Lift Capacity - Extension Deck Extended | 120 kg |
| Platform Height Max - Indoor | 10 m |
| Platform Height Max - Outdoor | 10 m |
| Drive Mode | 2WD X 2WS |
| Hydraulic System Capacity | 15 L |
| Elevation Time (Unloaded) | 53~58 s |
| Descent Time (Unloaded) | 40~45 s |
| Tilt Rating (front-to-back/side-to-side) | 3/1.5 ° ° |
| Turning Radius (Inside/Outside) | 0/2.35 m |
| Standards Compliance | CE/ANSI/CSA/AS/EAC/KCS |
| Drive Speed Stowed | 4 km/h |
| Drive Speed Raised | 0.8 km/h |
| Gradeability | 25 % |
| Maximum Horizontal Extension | 0.9 m |
| Ground Clearance | 100 mm |
| Platform Capacity | 320 kg |
| Platform Allowable Occupants Indoor | 2 |
| Platform Allowable Occupants Outdoor | 1 |
| Platform Size (L X W X H) | 2.03 m x 1.15 m x 1.1 m m |
| Wheelbase | 1.88 m m |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Sinoboom 1012E Electric Scissor Lift Product Brochure | Product Brochures |
This product is covered by the YR standard warranty. You can also read our return policy.
