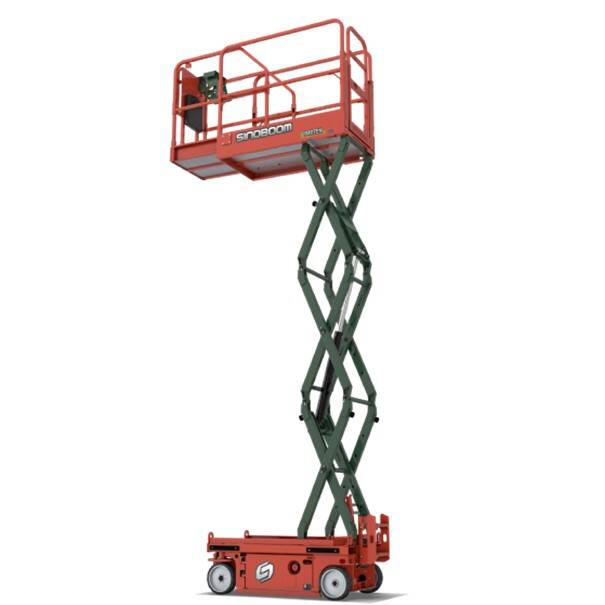

Sinoboom Electric Scissor Lift 6.5m – Capacity 240kg
Sinoboom 0407SE is ideal for indoor, low-level access tasks. Perfect for navigating tight spaces, standard doorways and elevators.
The Sinoboom 0407SE is designed for convenience, efficiency, and durability, easily passing through standard doorways and accessing elevators without hassle. Its compact sliding rail design allows for quick and easy debris cleaning, while the bumper rail and indented sliding rail help prevent scratches and maintain a clean appearance. Powered by a reliable DC motor, it delivers extended runtime for consistent, long-lasting performance.
Features
- 2WD×2WS
- Maintenance-free battery
- Fault diagnosis system
- Non-marking tires
- Proportional control
- Emergency lowering system
- Emergency stop
- Electrophoretic painting
- Tilt protection system
- Flashing beacon
- Forklift pockets and lifting points
- Overload sensing system
- Foldable guardrail
- Automatic pothole protection
- Manual storage box
- Drivable at full height
- Bumper rails
- Auto braking system
- Horn & buzzer
- Protection metal mesh
Options & Accessories
- RCBO
- AC power to platform
- Battery isolator
- EQSS/Protector
Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft.
| Brand | Sinoboom |
|---|---|
| Product Code | 0407SE |
| YR Connect Learn more | Built in |
| YR Connect Device Type | G5-SD01 | Oyster |
| Fuel Type | Battery |
| Machine Length Stowed | 1.47 m |
| Machine Height Stowed | 1.55 m |
| Machine Width Stowed | 0.78 m |
| Product Weight | 880 kg |
| Max Limited Gradeability | 25 % |
| Charger Input | 100~240V AC |
| Charger Output | 15A |
| Working Height Max - Indoor | 6.5 m |
| Working Height Max - Outdoor | 5.8 m |
| Lift Capacity - Extension Deck Extended | 115 kg |
| Platform Height Max - Indoor | 4.5 m |
| Platform Height Max - Outdoor | 3.8 m |
| Drive Mode | 2WD X 2WS |
| Hydraulic System Capacity | 4 L |
| Elevation Time (Unloaded) | 20s~23s s |
| Descent Time (Unloaded) | 25s~30s s |
| Tilt Rating (front-to-back/side-to-side) | 3°/1.5° ° |
| Turning Radius (Inside/Outside) | 0.3m/1.35m m |
| Standards Compliance | CE/ANSI/CSA/AS/EAC/KCS |
| Drive Speed Stowed | 4 km/h |
| Drive Speed Raised | 0.8 km/h |
| Ground Clearance | 61 mm |
| Platform Capacity | 240 kg |
| Platform Allowable Occupants Indoor | 2 |
| Platform Allowable Occupants Outdoor | 1 |
| Platform Size (L X W X H) | 1.34 x 0.7 x 1.1 m |
Opt = Optional extra
