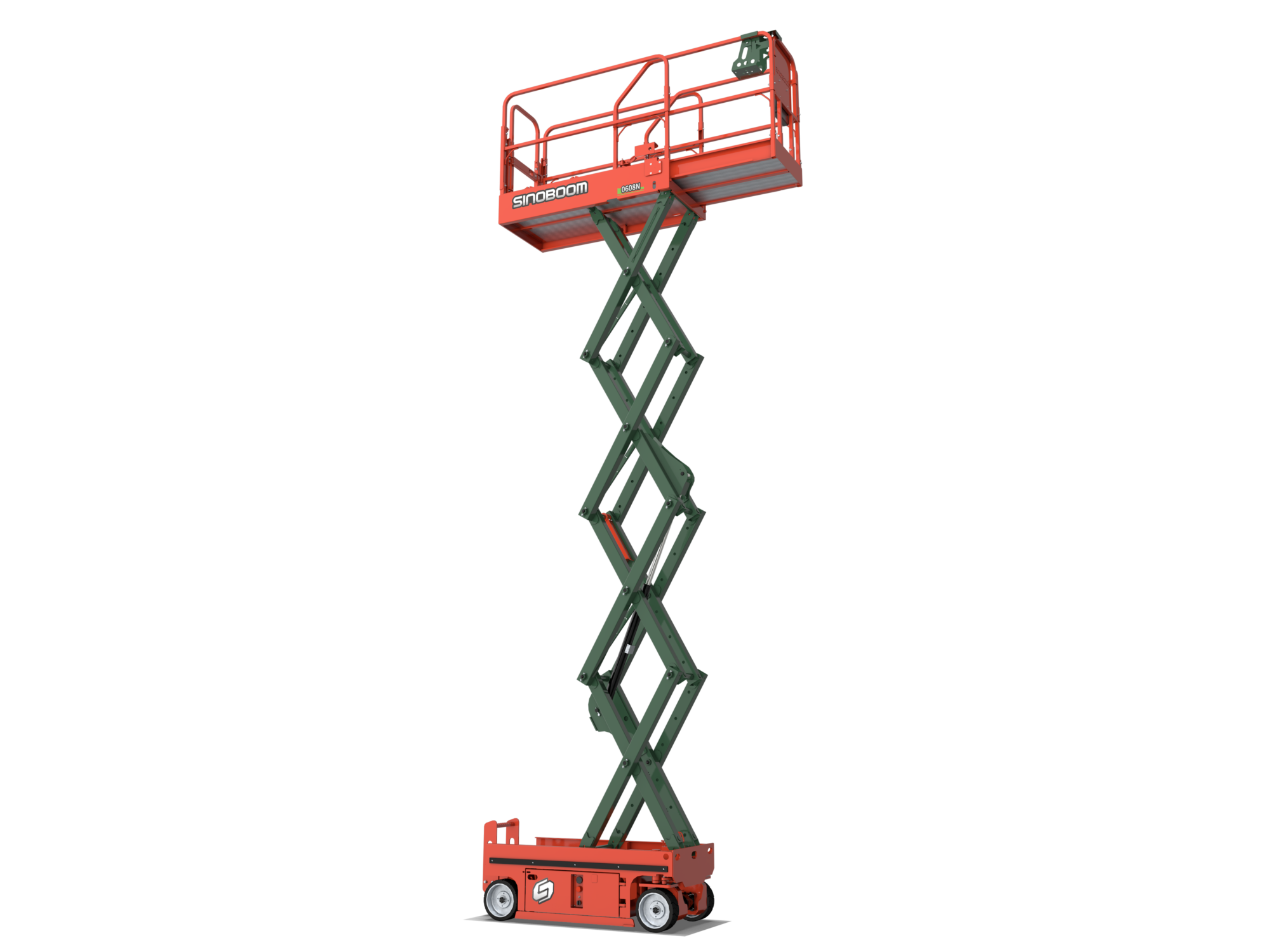

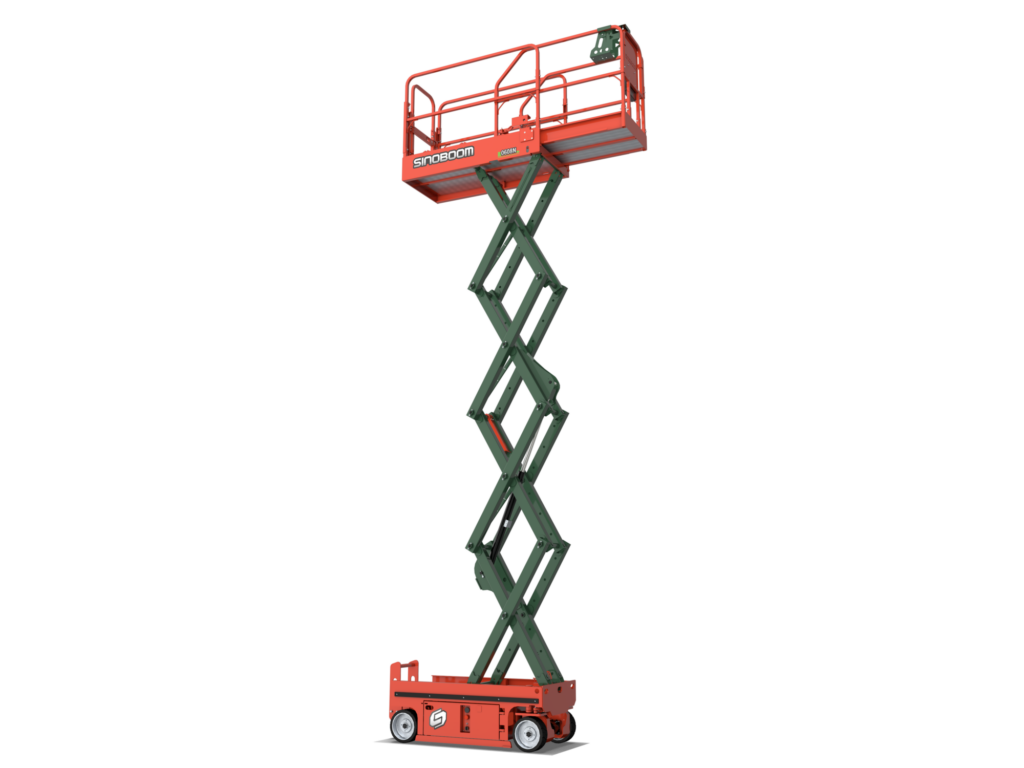

Sinoboom Electric Scissor Lift 7.8m – Capacity 230kg
Sinoboom 0608ME electric scissor lift is ideal for factories, construction companies and warehouses
With a maximum working height of 7.8M the 0608ME is suitable for both indoor and outdoor use with zero emmissons and non-marking tyres. Rapid and convenient transportation with two-way forklift slots, and ownership costs are lowered with highly versatile parts. Get reliable performance with bumper rail protection and a load capacity of 230kg. It is efficient with reduced maintenance costs and is ideal for a hire company fleet addition.
Features
- Higher work efficiency
- Environmental protection, zero emissions
- Rapid, convenient transport with two-way forklift slot
- Lower cost of ownership with highly versatile parts
- Forklift pockets and lifting points
- Proportional control
- Manual storage box
- Flashing beacon
- Emergency stop
- Electrophoretic painting
- Tilt protection system
- Foldable guardrail
- Non-marking tyres
- Track ready connector
- Overload sensing system
- Fault diagnosis system
- White noise alarm
- Drivable at full height
- Maintenance-free battery
- Automatic pothole protection
- Bumper rails
Options & Accessories
- RCBO
- AC power to platform
- Battery isolator
- EQSS/Protector
- AC Drive Motor
- Platform work light
Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft.
| Brand | Sinoboom |
|---|---|
| Product Code | 0608ME |
| YR Connect Learn more | Built in |
| YR Connect Device Type | G5-SD01 | Oyster |
| Fuel Type | Battery |
| Machine Length Stowed | 1.8 m |
| Machine Height Stowed | 1.88 m |
| Machine Width Stowed | 0.81 m |
| Product Weight | 1575 kg |
| Max Limited Gradeability | 25 % |
| Charger Input | 100~240V AC |
| Charger Output | 30A |
| Working Height Max - Indoor | 7.8 m |
| Working Height Max - Outdoor | 7.8 m |
| Lift Capacity - Extension Deck Extended | 120 kg |
| Platform Height Max - Indoor | 5.8 m |
| Platform Height Max - Outdoor | 5.8 m |
| Drive Mode | 2WD×2WS |
| Hydraulic System Capacity | 6 L |
| Elevation Time (Unloaded) | 15~20 s |
| Descent Time (Unloaded) | 25~30 s |
| Tilt Rating (front-to-back/side-to-side) | 3/1.5 ° |
| Turning Radius (Inside/Outside) | 0/1.49 m |
| Standards Compliance | CE/ANSI/CSA/AS/EAC/KCS |
| Drive Speed Stowed | 4 km/h |
| Drive Speed Raised | 0.5 km/h |
| Gradeability | 25 % |
| Maximum Horizontal Extension | 0.9 m |
| Ground Clearance | 75 mm |
| Platform Capacity | 230 kg |
| Platform Allowable Occupants Indoor | 2 |
| Platform Allowable Occupants Outdoor | 1 |
| Platform Size (L X W X H) | 1.64 x 0.76 x 0.96 m |
Opt = Optional extra
