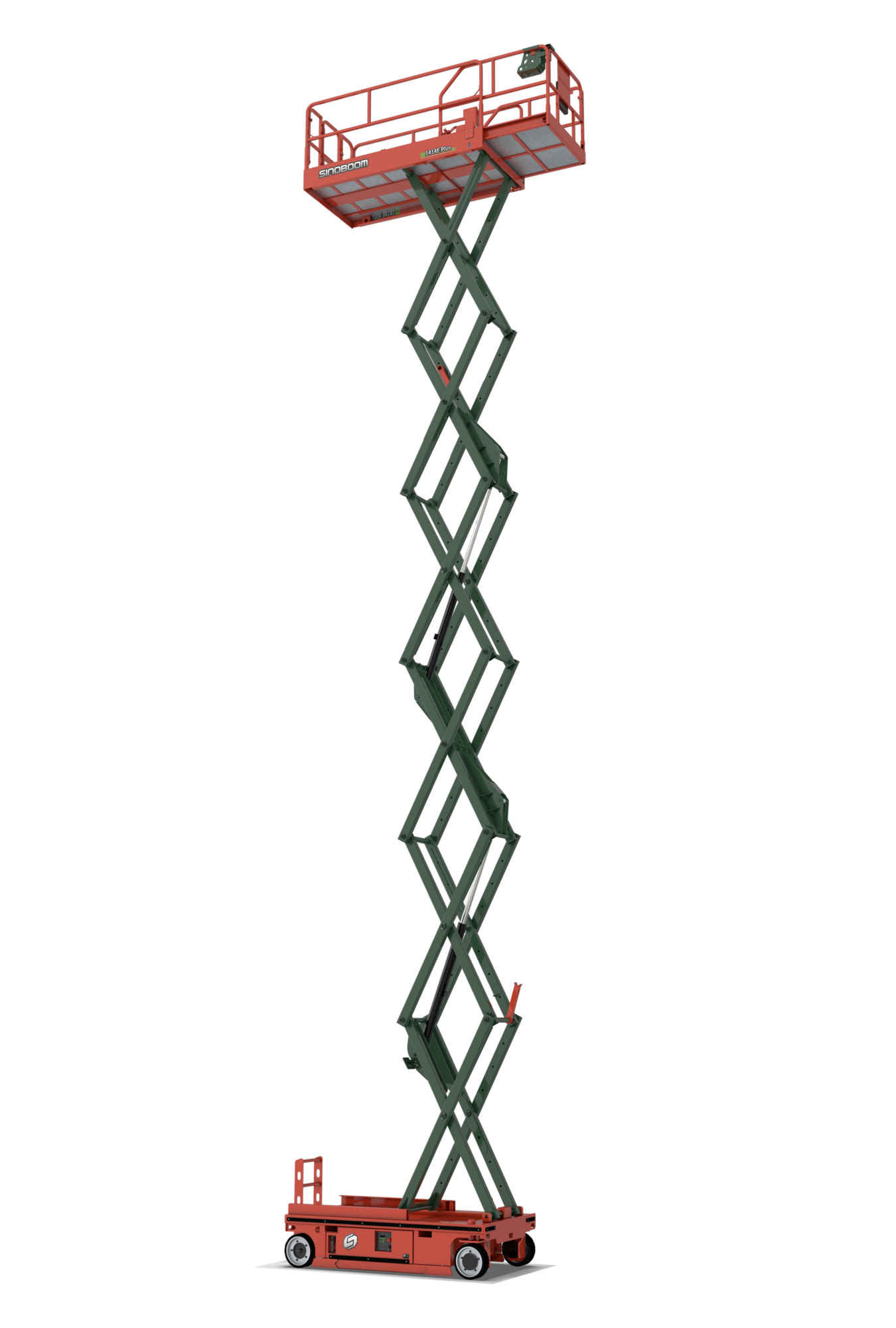

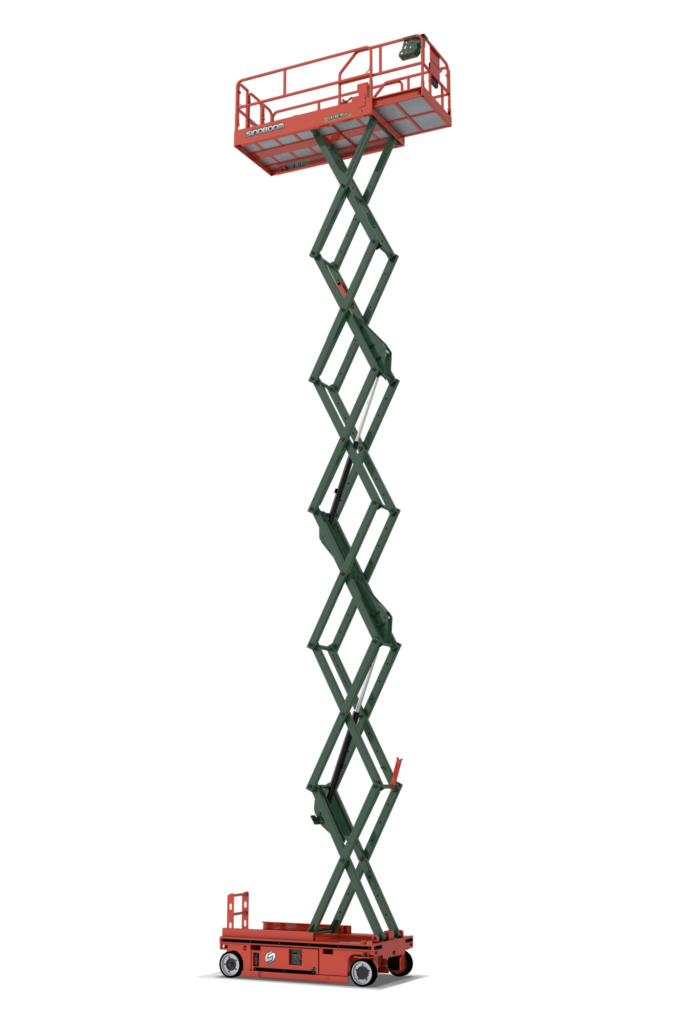

Sinoboom Electric Scissor Lift Plus 15.8m – Capacity 350kg
With a wide basket, the 1414E is ideal for construction sites, event management and for hire companies.
This scissor lift with extra width in the basket can be used both indoors and outdoors especially in areas with noise and polution restrictions and a platform extension of 0.9M which provides extra flexibility when requiring that extra reach with the height. The platform capacity allows plenty of room for two operators and tools or equipment. The short design of sliding rail makes debris easy to clean and the new wide scissor design makes for a more stable working-at-height experience. Ideal for construction sites, event management and for hire companies.
Features
- Higher work efficiency
- Environmental protection, zero emissions
- The short design of sliding rail makes debris easy to clean
- Rapid, convenient transport with two-way forklift slot
- Lower cost of ownership with highly versatile parts
- New, wide scissor design, for a more stable working-at-height experience
- Bumper rail and indented sliding rail designed for anti-scratch
- Forklift pockets and lifting points
- Proportional control
- Manual storage box
- Flashing beacon
- Emergency stop
- Emergency lowering system
- Electrophoretic painting
- Tilt protection system
- Foldable guardrail
- Non-marking tyres
- Track unit connector
- Overload sensing system
- Fault diagnosis system
- White noise alarm
- Drivable at full height
- Maintenance-free battery
- Automatic pothole protection
- Bumper rails
Options & Accessories
- RCBO
- AC power to platform
- Battery isolator
- Lithium battery
- AC Drive Motor
- EQSS/Protector
- Platform work light
| Brand | Sinoboom |
|---|---|
| Product Code | 1414E PLUS |
| YR Connect Learn more | Built in |
| YR Connect Device Type | G5-SD01 | Oyster |
| Machine Length Stowed | 2.78 m |
| Machine Height Stowed | 2.6 m |
| Machine Width Stowed | 1.41 m |
| Product Weight | 3660 kg |
| Charger Input | 100~240V AC |
| Charger Output | 30A |
| Working Height Max - Indoor | 15.8 m |
| Working Height Max - Outdoor | 10.5 m |
| Lift Capacity - Extension Deck Extended | 120 kg |
| Platform Height Max - Indoor | 13.8 m |
| Platform Height Max - Outdoor | 8.5 m |
| Drive Mode | 2WD X 2WS |
| Hydraulic System Capacity | 15 L |
| Elevation Time (Unloaded) | 75~85 s |
| Descent Time (Unloaded) | 55~63 s |
| Tilt Rating (front-to-back/side-to-side) | 3/1.5 ° |
| Turning Radius (Inside/Outside) | 0/2.64 m |
| Standards Compliance | CE/ANSI/CSA/AS/EAC/KCS |
| Drive Speed Stowed | 4 km/h |
| Drive Speed Raised | 0.8 km/h |
| Gradeability | 25 % |
| Maximum Horizontal Extension | 0.9 m |
| Ground Clearance | 2.413 mm |
| Platform Capacity | 350 kg |
| Platform Allowable Occupants Indoor | 2 |
| Platform Allowable Occupants Outdoor | 1 |
| Platform Size (L X W X H) | 2.64 m x 1.3 m x 1.1 m m |
| Wheelbase | 2.22 m |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Sinoboom 1414E PLUS Elecric Scissor Lift Product Brochure | Product Brochures |
This product is covered by the YR standard warranty. You can also read our return policy.
