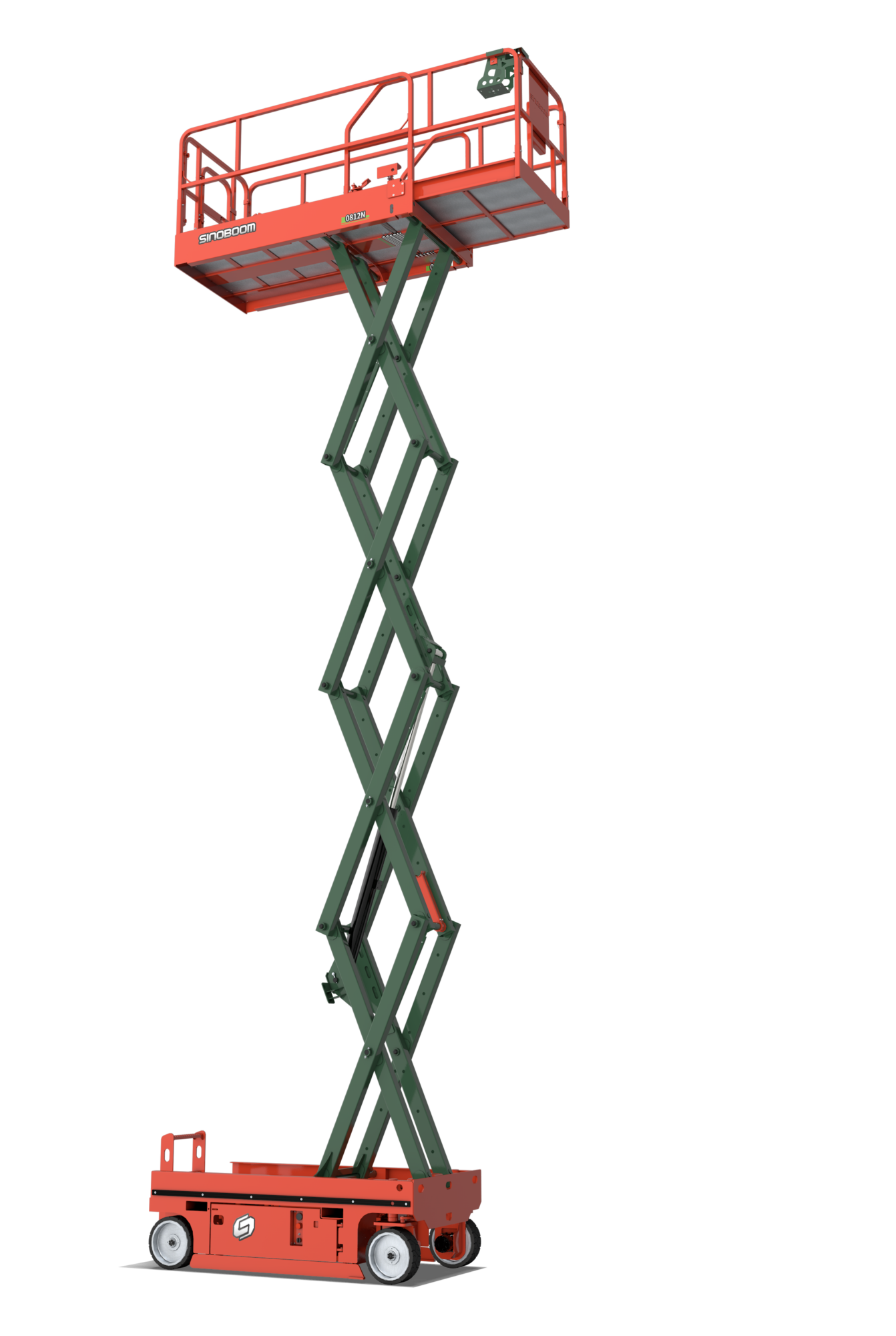

Sinoboom Electric Scissor Lift XC 10.1m – Capacity 450kg
The 0812E extra capacity is ideal for construction, electrical installations or plumbing, maintenance & repair tasks and event set up.
This scissor lift offers a highly efficient electric drive system that provides a smooth and quiet operation, suitable for outdoor and indoor use with extra capacity of 450kg for two occupants and tools. Reduce downtime and increase productivity with precise and responsive controls enhancing safety and the extendable platform giving additional reach. Particularly useful in construction, commercial buildings, facilities or retail areas.
Features
- Higher work efficiency
- Environmental protection, zero emissions
- The short design of sliding rail makes debris easy to clean
- Rapid, convenient transport with two-way forklift slot
- Lower cost of ownership with highly versatile parts
- New, wide scissor design, for a more stable working-at-height experience
- Bumper rail and indented sliding rail designed for anti-scratch
- Forklift pockets and lifting points
- Proportional control
- Manual storage box
- Flashing beacon
- Emergency stop
- Emergency lowering system
- Electrophoretic painting
- Tilt protection system
- Foldable guardrail
- Non-marking tyres
- Track unit connector
- Overload sensing system
- Fault diagnosis system
- White noise alarm
- Drivable at full height
- Maintenance-free battery
- Automatic pothole protection
- Bumper rails
- White noise alarm
Options & Accessories
- RCBO
- AC power to platform
- Battery isolator
- AC Drive Motor
- Platform working light
- Lithium battery
| Brand | Sinoboom |
|---|---|
| Product Code | 0812E |
| YR Connect Learn more | Built in |
| YR Connect Device Type | G5-SD01 | Oyster |
| Fuel Type | Battery |
| Machine Length Stowed | 2.45 m |
| Machine Height Stowed | 2.36 m |
| Machine Width Stowed | 1.17 m |
| Product Weight | 2715 kg |
| Charger Input | 100~240V AC |
| Charger Output | 30A |
| Working Height Max - Indoor | 10.1 m |
| Working Height Max - Outdoor | 10.1 m |
| Lift Capacity - Extension Deck Extended | 120 kg |
| Platform Height Max - Indoor | 8.1 m |
| Platform Height Max - Outdoor | 8.1 m |
| Drive Mode | 2WD X 2WS |
| Hydraulic System Capacity | 15 L |
| Elevation Time (Unloaded) | 33~38 s s |
| Descent Time (Unloaded) | 35~40 s s |
| Tilt Rating (front-to-back/side-to-side) | 3/1.5 ° ° |
| Turning Radius (Inside/Outside) | 0/2.35 m |
| Standards Compliance | CE/ANSI/CSA/AS/EAC/KCS |
| Drive Speed Stowed | 4 km/h |
| Drive Speed Raised | 0.8 km/h |
| Gradeability | 25 % |
| Maximum Horizontal Extension | 0.9 m |
| Ground Clearance | 100 mm |
| Platform Capacity | 450 kg |
| Platform Allowable Occupants Indoor | 2 |
| Platform Allowable Occupants Outdoor | 2 |
| Platform Size (L X W X H) | 2.30 x 1.15 x 1.1 m |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Sinoboom 0812E Electric Scissor Lift Product Brochure | Product Brochures |
