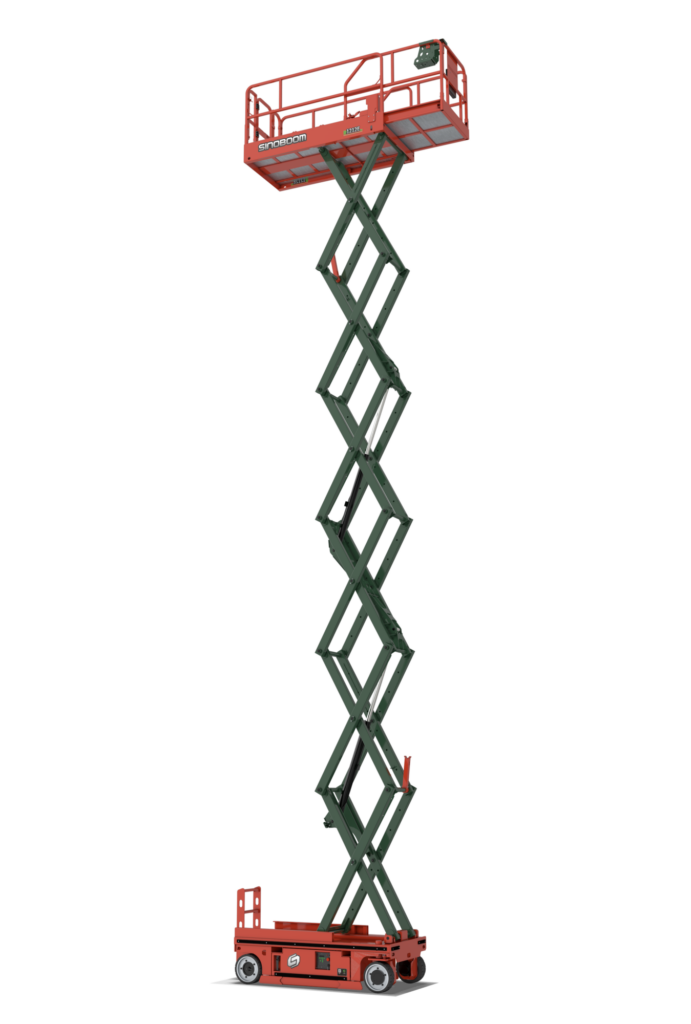

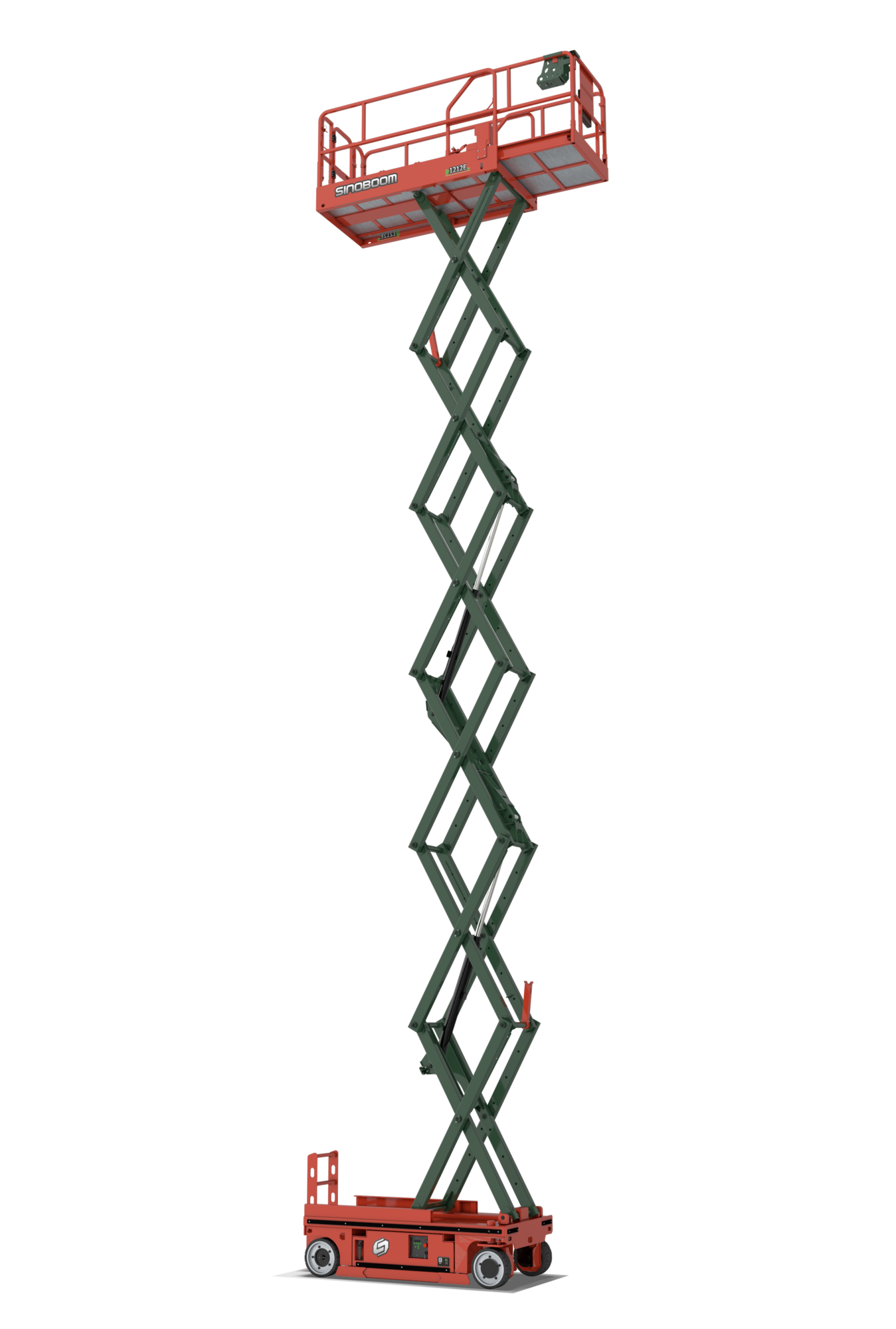

Sinoboom Electric Scissor Lift 13.9m – Capacity 320kg
The 1212E is perfect for vaious construction and installation projects that require elevation, such as electrical work, painting, and high-level maintenance
Delivering superior performance in challenging environments, equipped with a powerful electric motor this EWP is eco-friendly with zero emissions and extensive vertical reach. making it the ideal choice for various construction and installation projects that require elevation, such as electrical work, painting, and high-level maintenance. The new wide scissor design provides a more stable working-at-height experience, ensuring stability and safety on the job carrying a maximum platform capacity of 320kg.
Features
- Higher work efficiency
- Environmental protection, zero emissions
- The short design of sliding rail makes debris easy to clean
- Rapid, convenient transport with two-way forklift slot
- Lower cost of ownership with highly versatile parts
- New, wide scissor design, for a more stable working-at-height experience
- Bumper rail and indented sliding rail designed for anti-scratch
- Max Working Height (Indoor/Outdoor) 13.9M / 11.9M
- Max Platform Height (Indoor/Outdoor) 11.0M / 9.0M
- Horizontal Platform Extension 0.9M
- Length-Stowed 2.45M
- Width-Stowed 1.17M
- Height-Stowed (Rails Folded) 1.98M
- Height-Stowed (Rails Unfolded) 2.6M
- Wheelbase 1.88M
- Ground Clearance (Pothole Guard Stowed) 0.1M
- Ground Clearance (Pothole Guard Deployed) 0.025M
- Platform Size (L×W×H) 2.3M×1.15M×1.1M
- Platform Capacity 320kg
- Extension Platform Capacity 120kg
- Max Platform Occupants (Indoor/Outdoor) 2 Persons / 1 Person
- Drive Speed (Stowed) 0～4 km/h
- Drive Speed (Raised) 0～0.8 km/h
- Lift Time (Unloaded) 63 s～68 s
- Lower Time (Unloaded) 44 s～49 s
- Gradeability 25%
- Allowable Inclination (front-to-back/side-to-side) 3o / 1.5°
- Turning Radius (Inside/Outside) 0.0M / 2.35M
- Tire Size/Type 380 x 125mm / solid
- Drive × Steer 2WD×2WS
- Power Source 24V / 3.3kW
- Drive Motor 24V DC/0.85 kW / 24V AC/0.7kW
- Hydraulic Tank Capacity 15L
- Battery 24V, 280 Ah (Lead acid battery) / 25.6V, 200Ah (Lithium battery)
- Charger (Input/Output) 100-240V AC / 30A
- Forklift pockets and lifting points
- Proportional control
- Manual storage box
- Flashing beacon
- Emergency stop
- Emergency lowering system
- Electrophoretic painting
- Tilt protection system
- Foldable guardrail
- Non-marking tyres
- Track unit connector
- Overload sensing system
- Fault diagnosis system
- White noise alarm
- Drivable at full height
- Maintenance-free battery
- Automatic pothole protection
- Bumper rails
Options & Accessories
- RCBO
- AC power to platform
- Battery isolator
- Lithium battery
- AC Drive Motor
- EQSS/Protector
| Brand | Sinoboom |
|---|---|
| Product Code | 1212E |
| YR Connect Learn more | Built in |
| YR Connect Device Type | G5-SD01 | Oyster |
| Fuel Type | Battery |
| Machine Length Stowed | 2.45 m |
| Machine Height Stowed | 2.6 m |
| Machine Width Stowed | 1.17 m |
| Product Weight | 3210 kg |
| Charger Input | 100~240V AC |
| Charger Output | 30A |
| Working Height Max - Indoor | 13.9 m |
| Working Height Max - Outdoor | 11.9 m |
| Lift Capacity - Extension Deck Extended | 120 kg |
| Platform Height Max - Indoor | 11 m |
| Platform Height Max - Outdoor | 9 m |
| Platform Length - Outside, Extended | 0.9 m |
| Drive Mode | 2WD X 2WS |
| Hydraulic System Capacity | 15 L |
| Elevation Time (Unloaded) | 63~68 s s |
| Descent Time (Unloaded) | 44~49 s s |
| Turning Radius (Inside/Outside) | 0/2.35 m |
| Standards Compliance | CE/ANSI/CSA/AS/EAC/KCS |
| Drive Speed Stowed | 4 km/h |
| Drive Speed Raised | 0.8 km/h |
| Gradeability | 25 % |
| Ground Clearance | 100 mm |
| Platform Capacity | 320 kg |
| Platform Allowable Occupants Indoor | 2 |
| Platform Allowable Occupants Outdoor | 1 |
| Platform Size (L X W X H) | 2.3m x 1.15m x 1.1m m |
| Wheelbase | 1.88 m m |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Sinoboom 1212E Electric Scissor Lift Product Brochure | Product Brochures |
