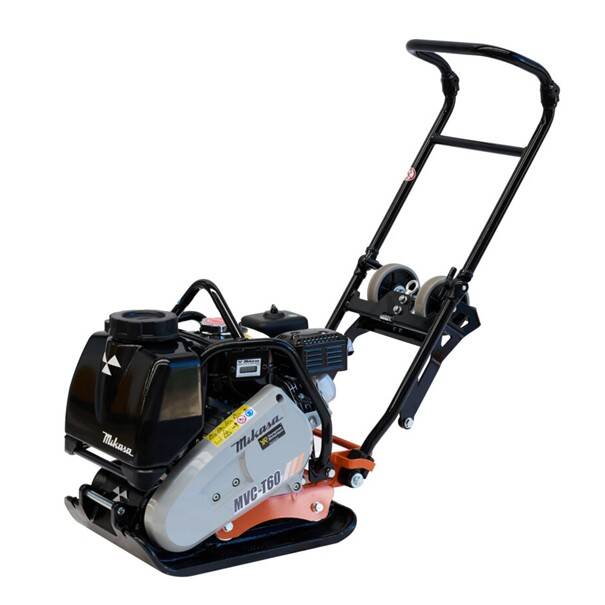

Mikasa 69kg Petrol Forward Plate Compactor – 10.1kN
The Mikasa MVCT60HVASC is ideal for medium to high compaction jobs where operators may be operating for many hours on end.
The Mikasa ‘VAS’ (Vibration Absorbing System) range of plate compactors offer all the same features as the standard plates however with the extra anti-vibration system on the handles that eliminates hand/arm vibration. The handles include an extra rubber joint that is one more link in protecting the operator from harmful vibrations, and are foldable for easier transportation.
This plate compactor is ideal for medium to high compaction jobs where operators may be operating for many hours on end. Compact and only weighing 69kg the MVCT60HVASC now comes with an hour meter as well as a water tank to assist with asphalt work.
Fitted with Mikasa fully enclosed belt system and cast steel base this is ideal for a contractor or hire company who is looking for the best quality plate packed with features and operator comfort.
Features
- VAS handle to reduce hand-arm vibration.

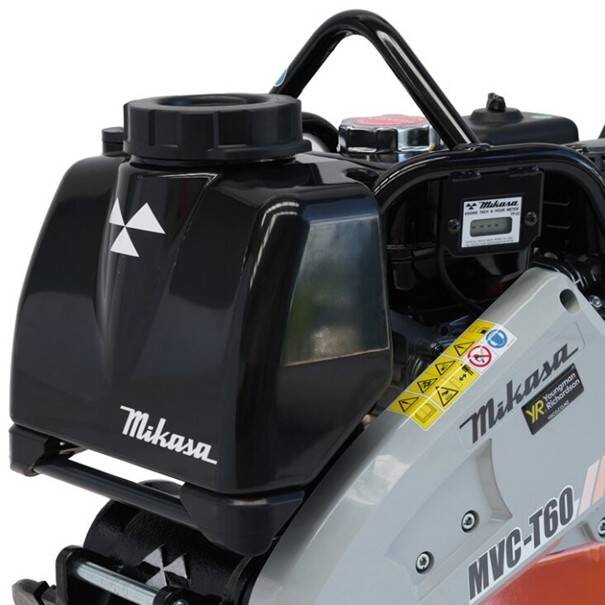

- Water tank to manage dust (8.5L) included.
- Highly compact fold-away design requiring minimal space

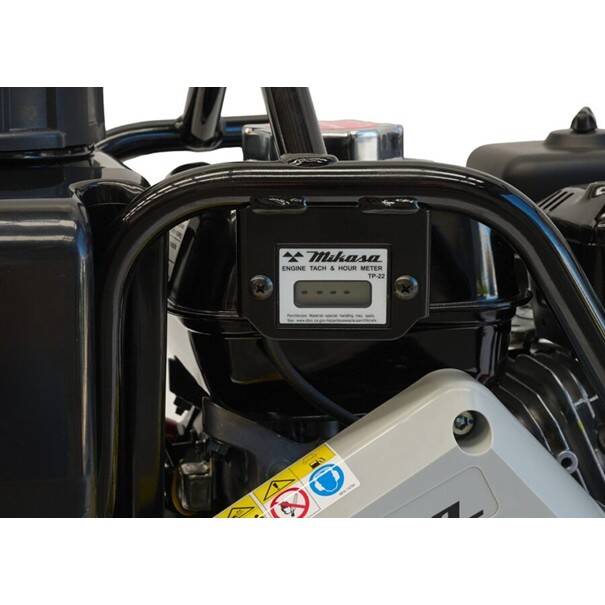

- Tacho hour meter for checking engine R.P.M. and operating time.
- Single-point lifting hooks for easy loading and unloading.
- Attached fold-away cart for easy transportation
| Brand | Mikasa |
|---|---|
| YR Connect Learn more | Built in |
| Deviceless Asset | |
| Fuel Type | Petrol |
| Vibration Absorbing System (VAS) Handle | |
| Folding Handle | |
| Long Handle | No |
| Water Tank | |
| Water Tank Capacity | 8.5 L |
| Lifting Hook | |
| Cart | |
| Product Dimension (Length) | 980 mm |
| Product Dimension (Width) | 350 mm |
| Product Dimension (Height) | 1005 mm |

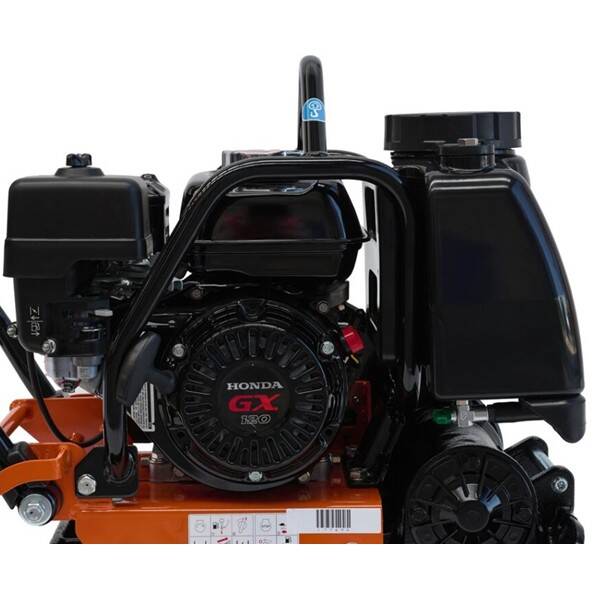

| Power Source: Brand | Honda |
| Power Source: Model | GX120 |
| Power Source: Max Output | 2.4 kW |
| Power Source: Max Output | 3.3 HP |
| Product Weight | 69 kg |
| Plate Size (Width) | 350 mm |
| Plate Size (Length) | 520 mm |
| Vibrating Frequency | 93 Hz |
| Vibrating Frequency | 5600 vpm |
| Centrifugal Force Max | 10.1 kN |
| Centrifugal Force Max | 1030 kgf |
| Max Travel Speed | 25 m/min |
| Max Limited Gradeability | 35 % |
| Special Ductile Compaction Base Plate | |
| Rugged Double Compaction Base Plate Design | No |
| Self-Lubricating Vibrator System (Patented) | |
| Rubber Mat | No |
| Mikasa Carry | Opt |
| Fuel Tank Capacity | 2 L |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Mikasa Forward Plate Compactors Brochure | Product Brochures |
