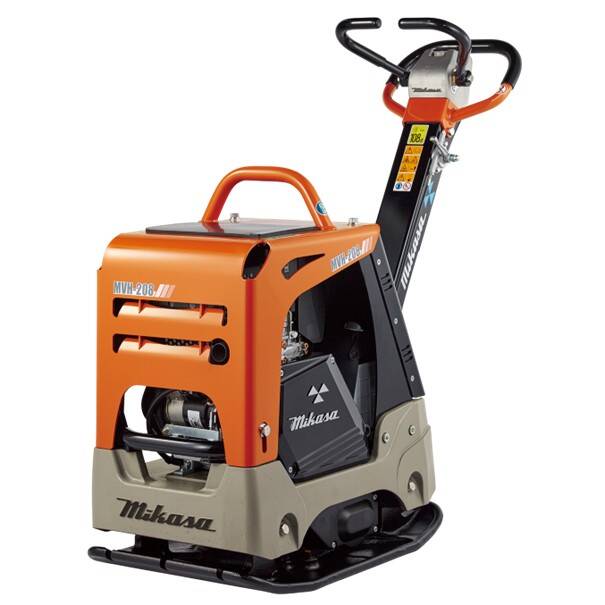

Mikasa 238kg Hatz Diesel Reverse Plate Compactor – 37kN
The Mikasa Reversible Plate Compactor MVH208DZN is ideal for civil and commercial construction projects, drainage and trench works.
The premium Mikasa Reversible Plate Compactors set the standard for efficient compaction of sand, gravel and cohesive soils.
The Mikasa Reversible Plate Compactor MVH208DSZN offers exceptional operator comfort and safety with features including a cyclonic air filtration system, seamless forward/reverse motions, engine tacho meter and anti-vibration and height adjustable handle. The robust and durable design provides superior build quality and excellent compaction performance and results.
The Mikasa Reversible Plate Compactor MVH208DSZN is ideal for civil and commercial construction projects, drainage and trench works.
Features
- Engine hour meter and tachometer to efficiently manage service intervals and monitor rpm for optimum compaction performance
- The forward/reverse control lever comes with a built-in actuator for seamless and smooth transition between both forward and reverse motions
- Cyclonic air filtration system delivers superior air filtration to lengthen service internals and improve engine protection
- Anti-vibration handle provides low hand and arm vibration transfer to the operator
- Height adjustable handle for improved operator comfort
- Robust, full engine protection frame provides superior protection against engine damage and the hinge design simplifies maintenance by offering convenient access to all serviceable components
- The sealed clutch and belt guard protects against the ingress of dust and other unwanted materials that can prematurely wear out critical clutch component and V-belt
- Central lifting hook for easy and safe onsite handling
- Hatz 1B30 engine provides hassle-free operation and reliability
- Removable extension plates to easily adjust the width of the plate to match the job requirements
- 2 Year Mikasa product warranty
| Brand | Mikasa |
|---|---|
| YR Connect Learn more | Built in |
| YR Connect Device Type | EHM101-4G | Quick Connect |
| Fuel Type | Diesel |
| Compaction Sensor "Compas II" | No |
| Vibration Absorbing System (VAS) Handle | |
| Water Tank | No |
| Lifting Hook | |
| Cart | Opt |
| Forward/Reverse Travel Lever | |
| Integrated Vibrating Plate | |
| Monocoque Structure | |
| Self-Locking System | |
| Cyclone Pre-Cleaner | |
| Tacho Hour Meter | |
| Product Dimension (Length) | 1310 mm |
| Product Dimension (Width) | 500 mm |
| Product Dimension (Height) | 1010 mm |
| Start Method | Recoil, Electric |
| Power Source: Brand | Hatz |
| Power Source: Model | 1B30 |
| Power Source: Max Output | 4.9 kW |
| Power Source: Max Output | 6.7 HP |
| Product Weight | 240 kg |
| Plate Size (Width) | 500 mm |
| Plate Size (Length) | 720 mm |
| Vibrating Frequency | 87 Hz |
| Vibrating Frequency | 5200 vpm |
| Centrifugal Force Max | 37 kN |
| Centrifugal Force Max | 3772 kgf |
| Max Travel Speed | 27 m/min |
Opt = Optional extra
