Mikasa 68kg Petrol Reverse Plate Compactor – 15kN
The Mikasa MVH-R60H is ideal for civil and commercial construction projects, drainage and trench works.
The premium Mikasa Reversible Plate Compactors set the standard for efficient compaction of sand, gravel and cohesive soils.

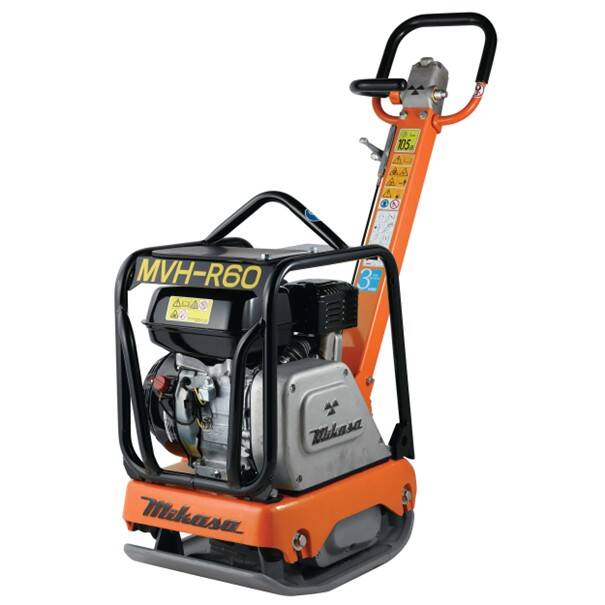

The Mikasa Reversible Plate Compactor MVH-R60H offers enhanced operator comfort and safety with features including seamless forward/reverse motions, height adjustable handle and central lifting hook. The robust and durable design provides superior build quality and excellent compaction performance and results.
The Mikasa Reversible Plate Compactor MVH-R60H is ideal for civil and commercial construction projects, drainage and trench works.

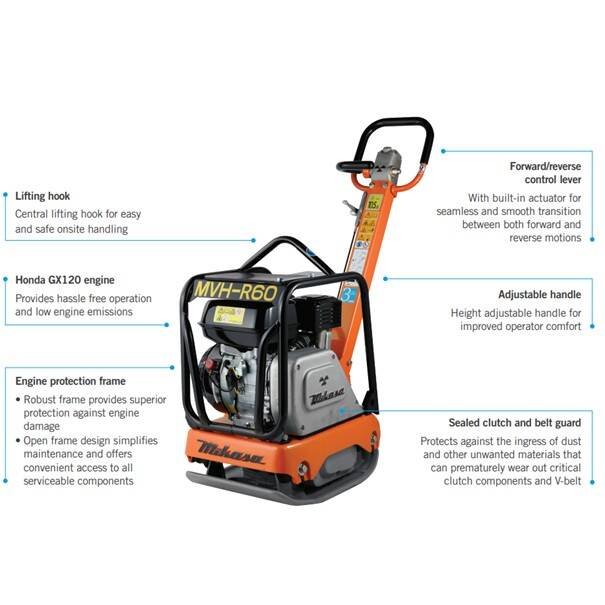

Features
- The forward/reverse control lever comes with a built-in actuator for seamless and smooth transition between both forward and reverse motions
- Height adjustable handle for improved operator comfort
- Robust engine protection frame provides superior protection against engine damage and the open frame design simplifies maintenance by offering convenient access to all serviceable components
- The sealed clutch and belt guard protects against the ingress of dust and other unwanted materials that can prematurely wear out critical clutch component and V-belt
- Central lifting hook for easy and safe onsite handling
- Honda GX120 4-stroke engine provides hassle-free operation and low engine emissions
- 3 Year Mikasa product warranty
| Brand | Mikasa |
|---|---|
| YR Connect Learn more | Built in |
| Deviceless Asset | |
| Fuel Type | Petrol |
| Compaction Sensor "Compas II" | No |
| Vibration Absorbing System (VAS) Handle | No |
| Water Tank | Opt |
| Water Tank Capacity | 11 L |
| Lifting Hook | |
| Cart | Opt |
| Forward/Reverse Travel Lever | |
| Integrated Vibrating Plate | No |
| Monocoque Structure | No |
| Self-Locking System | No |
| Cyclone Pre-Cleaner | No |
| Tacho Hour Meter | |
| Removable Extension Plates | No |
| Product Dimension (Length) | 870 mm |
| Product Dimension (Width) | 350 mm |
| Product Dimension (Height) | 955 mm |
| Power Source: Brand | Honda |
| Power Source: Model | GX120 |
| Power Source: Max Output | 2.4 kW |
| Power Source: Max Output | 3.3 HP |
| Product Weight | 68 kg |
| Plate Size (Width) | 350 mm |
| Plate Size (Length) | 480 mm |
| Vibrating Frequency | 100 Hz |
| Vibrating Frequency | 1530 vpm |
| Centrifugal Force Max | 15 kN |
| Centrifugal Force Max | 1531 kgf |
| Max Travel Speed | 25 m/min |
Opt = Optional extra
