Mikasa 64kg Petrol Trench Rammer – 13.6kN

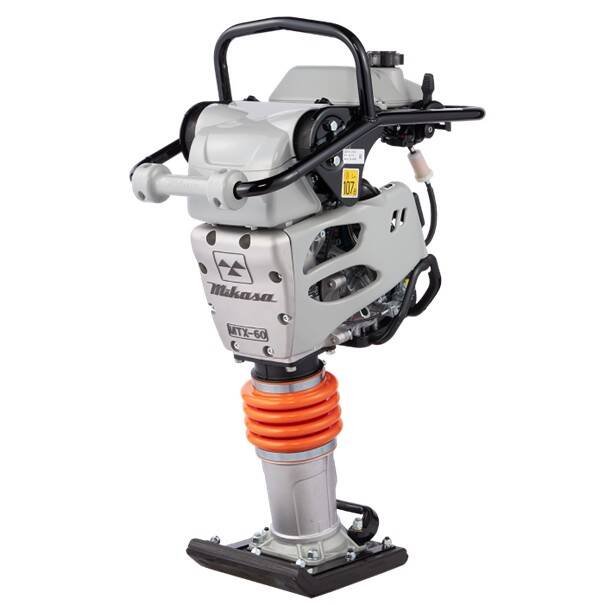

The Mikasa MTX60E is a perfectly balanced trench rammer that hits hard, optimized for operator comfort and transportation.
Mikasa Trench rammers are world leaders for balance, compaction, ease of operation and functionality. All these features add up to high work efficiency and less operator fatigue.
The Mikasa MTX60E 64kg rammer features a single function throttle lever that stops the engine and shuts the fuel off in one single operation, an air cleaner system with 3 times the dust holding capacity of others, VAS handle (Vibration Absorbing System) reduces vibration to the operator meaning longer run times, heavy duty ribbed bellows with 3 year warranty against failure, one piece pressed wooden foot with a hardened steel plate, large fuel tank incorporating an hour meter and tachometer with a 4 stroke Honda petrol engine.
Mikasa Rammers suit any contractor or hire company where longevity, low maintenance and superb compaction is needed.

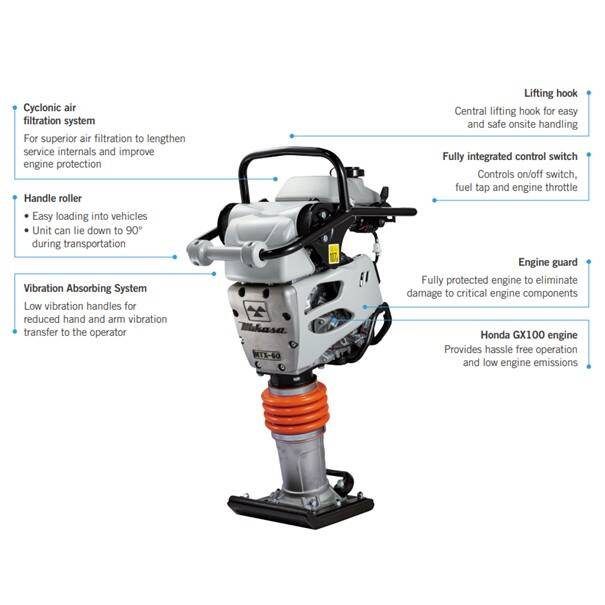

Features
- Cyclonic air filtration system delivers superior air filtration to lengthen service internals and improve engine protection
- Practical handle roller makes loading the MTX60E into vehicles easy and ensures the unit can lie down to 90° during transportation
- Vibration Absorbing System for reduced hand and arm vibration transfer to the operator
- Fully integrated control switch controls the on/off switch, fuel tap, and engine throttle
- Engine hour meter assists in the management of service intervals and monitors engine RPM for optimum compaction performance
- Engine guard fully protects the engine, eliminating damage to critical engine components
- Central lifting hook for easy and safe onsite handling
- Honda GX100 4-stroke engine provides hassle-free operation and low engine emissions
| Brand | Mikasa |
|---|---|
| YR Connect Learn more | Built in |
| YR Connect Device Type | G5-SD01 | Oyster |
| Fuel Type | Petrol |
| Vibration Absorbing System (VAS) Handle | |
| Wear-Resistant Foot | |
| Lifting Hook | |
| Cart | Opt |
| Throttle Lever | |
| Engine Guard | |
| Tacho Hour Meter | |
| Packaged Length | 74 mm |
| Packaged Width | 39 mm |
| Packaged Height | 112 mm |
| Packaged Weight | 86 kg |
| Product Dimension (Length) | 713 mm |
| Product Dimension (Width) | 350 mm |
| Product Dimension (Height) | 1025 mm |
| Air Cleaner | Large Twin Cyclone |
| Power Source: Brand | Honda |
| Power Source: Model | GX100 |
| Power Source: Max Output | 2.1 kW |
| Product Weight | 64 kg |
| Plate Size (Width) | 265 mm |
| Plate Size (Length) | 340 mm |
| Mikasa Carry | Opt |
| Impact Rate | 644-695 ipm |
| Impact Force | 13.6 kN |
| Impact Force | 1390 kgf |
| Jumping Stroke | 50-80 mm |
| Fuel Tank Capacity | 2.5 L |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Mikasa Trench Rammer Brochure | Product Brochures | |
| Mikasa MTX Rammer Range Service Manual | Service Manuals |
This product is covered by the YR standard warranty. You can also read our return policy.
