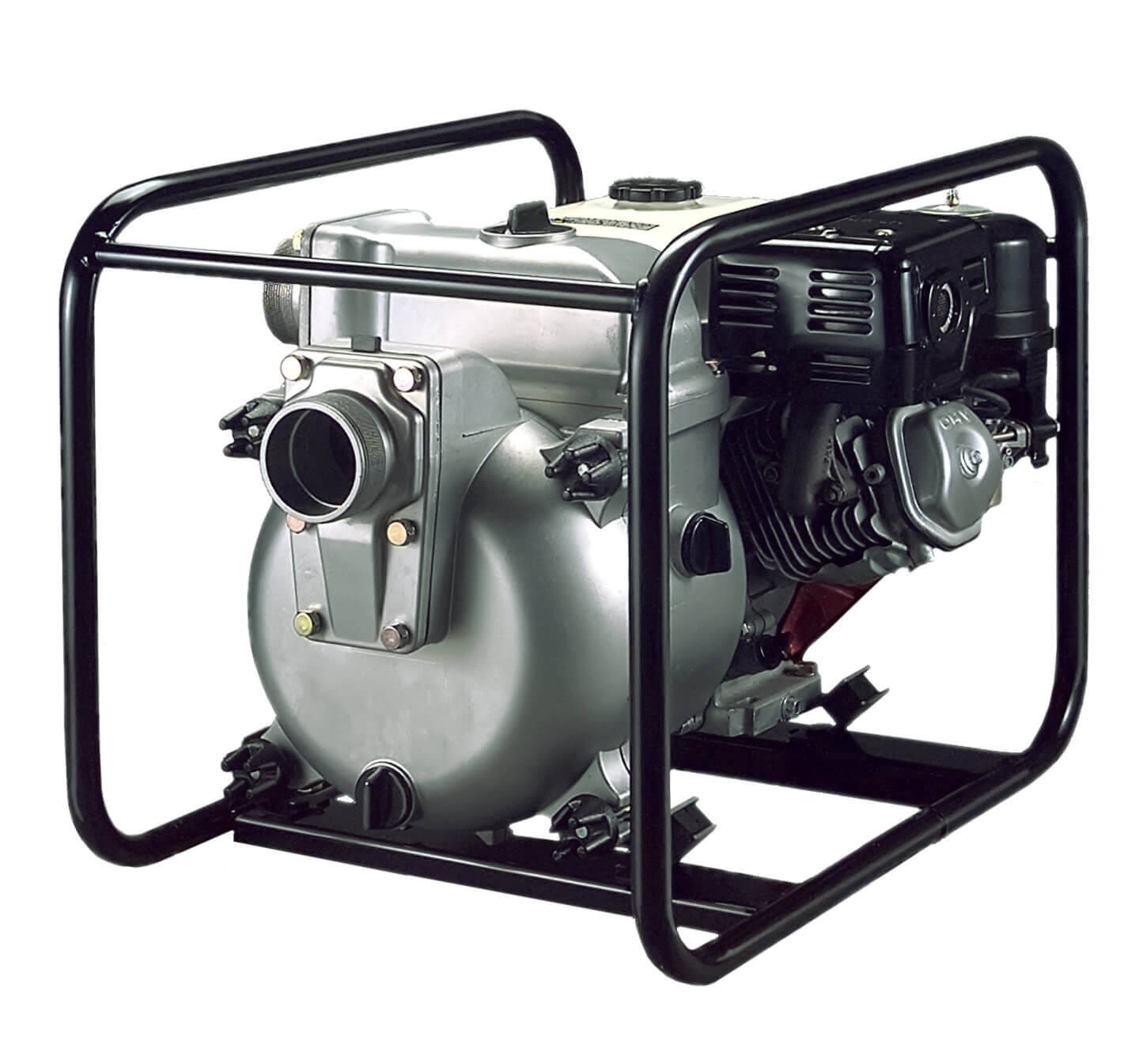

Koshin 3″ Petrol Trash Pump – 1340 L/min
Great for tough debris conditions, industrial, constructions, agriculture, landscape and general water removal. Containing up to 30% suspended solids.
For those applications where large solids and debris are encountered constantly and high run times are needed, Koshin offers a line of trash pumps designed to meet the infiltration of such solids. Deep hardened steel impeller vanes and a large volute discharge opening can pass suspended sticks, stones and debris without clogging the pump or harming its components.
Designed to be user-friendly, the KTH-80X 3″ trash pump self-priming construction pumps remain durable under the harshest of conditions and are used by construction, civil engineering and rental companies nationwide.
Features
- The cleanout cover and volute can be easily removed in seconds for easy cleaning of debris.
- The seal is the heart of the pump. Silicon Carbide seals, developed exclusively for Koshin, vastly increase the durability of the mechanical seal and protect engine shaft.
- Impeller is Hi-chrome cast iron. Volute manufactured from Spheroidal Graphite cast iron. These materials employed to ensure long life and low maintenance. No wear-out plates.
- Sturdy steel wrap-around pipe frame protects entire unit.
- Rubber mountings minimize vibration.
- Honda OHV engine with oil alert, provides reliability and low fuel consumption.
- All aluminium die cast pump housing for light weight and portability.
| Brand | Koshin |
|---|---|
| GTIN | 4971770120709 |
| Pump Type | Full Trash |
| Fuel Type | Petrol |
| Hose Fitting & Strainer | |
| Product Dimension (Length) | 710 mm |
| Product Dimension (Width) | 506 mm |
| Product Dimension (Height) | 570 mm |
| Connection Size | 80mm / 3" |
| Connection Thread | External Pipe Thread |
| Discharge Volume | 1340 L/Min |
| Cubic Capacity | 270 ccm |
| Max Suction Height | 8 m |
| Max Solids Diameter | 26 mm |
| Total Head | 27 m |
| Continuous Running Time | 2.2 h |
| Start Method | Recoil |
| Engine Strokes | 4-Stroke |
| Power Source: Brand | Honda |
| Power Source: Model | GX240 |
| Power Source: Max Output | 5.9 kW |
| Power Source: Max Output | 7.9 HP |
| Fuel Tank Capacity | 5.3 L |
| Dry Weight | 59 kg |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Koshin Water Pumps Brochure | Product Brochures |
