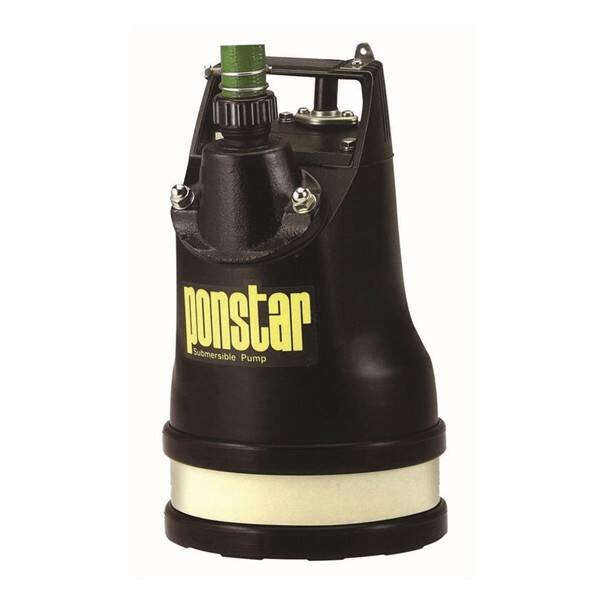

Koshin 1″ Electric Submersible Pump -125 L/min 230V
This pump has been specially developed for use in narrow drainage shafts or floor pits and is a real step forward in dewatering solutions.
Experience unsurpassed pumping performance with the PXL-52522 submersible pump from KOSHIN Japan. This pump has been specially developed for use in narrow drainage shafts or floor pits and is a real step forward in dewatering solutions.
Thanks to their remarkable ability to work at a water depth of just 1 mm, you no longer have to deal with excessive water build-up. This makes it the perfect choice for all situations where it is important to get rid of water.
The pump’s reversible discharge flange allows for easy installation with two different flange positions, giving you more flexibility and convenience than ever before. The base plate and the impeller are made of durable rubber material and ensure a long service life even in the most demanding environments.
Safety and convenience are the top priorities with this submersible pump. Equipped with thermal protection and a built-in non-return valve, you can be sure that your pumping tasks will be carried out efficiently and reliably.
From the discharge of groundwater to the disposal of residual water from roof tanks or swimming pools, this pump is a versatile solution for various applications. Don’t let excess water hinder your progress – invest in the PXL-52522 submersible pump from Youngman Richardson and experience unrivalled performance like never before.
Features
- Extremely low pick-up down to 2mm
- Thermal protection cut-out
- Cast pump body
- Motor cooling
- 230V 50 Hz single phase
- Hose couplings
| Brand | Koshin |
|---|---|
| Pump Type | Submersible |
| Fuel Type | AC |
| Float Switch | No |
| Product Dimension (Length) | 260 mm |
| Product Dimension (Width) | 260 mm |
| Product Dimension (Height) | 417 mm |
| Connection Size | 25mm / 1" |
| Discharge Volume | 120 L/Min |
| Max Solids Diameter | 1 mm |
| Total Head | 10 m |
| Rated Input Power | 0.54 kW |
| Frequency | 50 Hz |
| Rated RPM | 2900 rpm |
| Power Cord Length | 10 m |
| Product Weight | 15 kg |
| Electrical Phases | Single |
| Rated AC Output | 400 W |
| Rated Voltage | 230 V |
| Rated Current | 2.9 A |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Koshin Submersible Pumps Brochure | Product Brochures |
