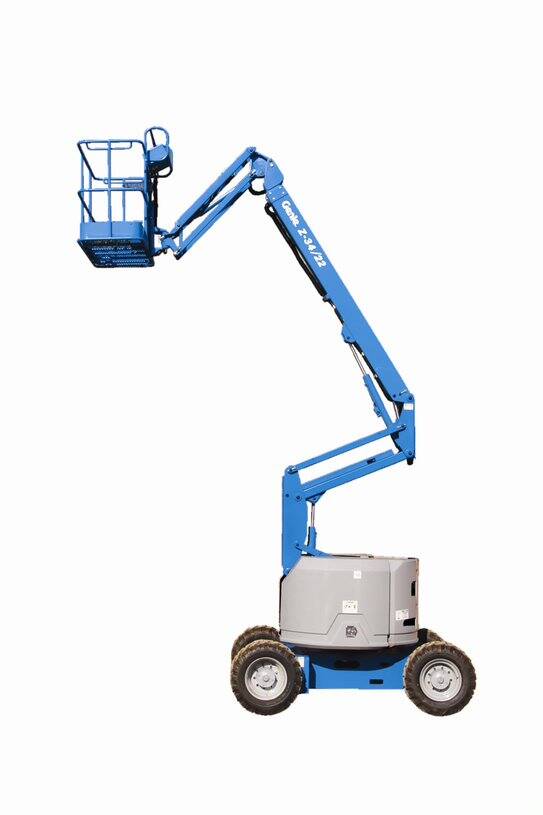

Genie Diesel Articulating Z Boom 12.54m – Capacity 227kg
The Genie Z-34/22 IC is ideal for building maintenance, construction projects, facility management, and installation work.
The Genie Z-34/22 IC is a diesel-powered articulating boom lift designed to deliver outstanding versatility, manoeuvrability, and outreach for construction, maintenance, and industrial applications. With a maximum working height of 12.54m and an impressive horizontal outreach of 6.78m, it provides excellent access to hard-to-reach areas while easily manoeuvring around obstacles.
Its articulating boom design, compact dimensions, and rough terrain capability make it ideal for outdoor work on challenging job sites. Combining reliable performance with precise positioning, the Genie Z-34/22 IC is a proven solution for safely working at height.
Features
- Solid rubber non-marking tyres
- Self-levelling platform
- Hydraulic platform rotation
- Fully proportional controls
- Thumb rocker steer
- Drive enable
- Horn
- Hour meter
- Tilt alarm
- Alarm package
- 355 deg; non-continuous turntable rotation
- Locking turntable covers
- Zero tailswing and front arm swing
- Two speed wheel motors
- Dual flashing beacons
| Brand | Genie |
|---|---|
| Product Code | Z34/22IC |
| YR Connect Learn more | Built in |
| YR Connect Device Type | EHM101-4G | Quick Connect |
| Fuel Type | Diesel |
| Machine Length Stowed | 5.66 m |
| Machine Height Stowed | 2.06 m |
| Machine Width Stowed | 1.85 m |
| Product Weight | 4740 kg |
| Max Limited Gradeability | 45 % |
| Fuel Tank Capacity | 35.2 L |
| Working Height Max - Outdoor | 12.62 m |
| Platform Height Max - Outdoor | 10.62 m |
| Drive Mode | 4WD |
| Hydraulic System Capacity | 71.9 L |
| Turning Radius (Inside/Outside) | 1.80 / 4.11 m |
| Engine Type | Kubota D1105 Diesel (26 hp / 19.4 kW) |
| Rated Voltage | 12 V |
| Drive Speed Stowed | 4.8 km/h |
| Drive Speed Raised | 1.1 km/h |
| Gradeability | 45 % |
| Maximum Horizontal Extension | 6.78 m |
| Ground Clearance | 170 mm |
| Platform Capacity | 227 kg |
| Platform Allowable Occupants Indoor | 2 |
| Platform Allowable Occupants Outdoor | 2 |
| Platform Size (L X W X H) | 1.42 x 0.76 x 1.10 m |
| Wheelbase | 1.88 m |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Genie Z34/22 IC Product Brochure | Product Brochures |
This product is covered by the YR standard warranty. You can also read our return policy.
