Genie Electric Articulating Z Boom N 12.54m – Capacity 227kg

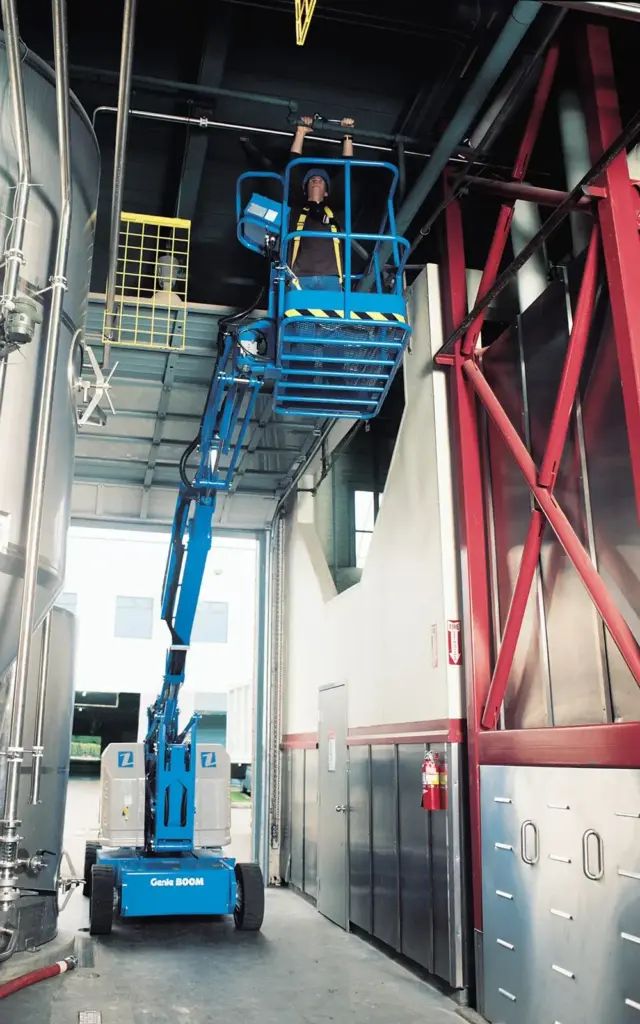

The Genie Z-34/22 N is ideal for indoor maintenance, installation, inspection, and construction work in tight or congested spaces.

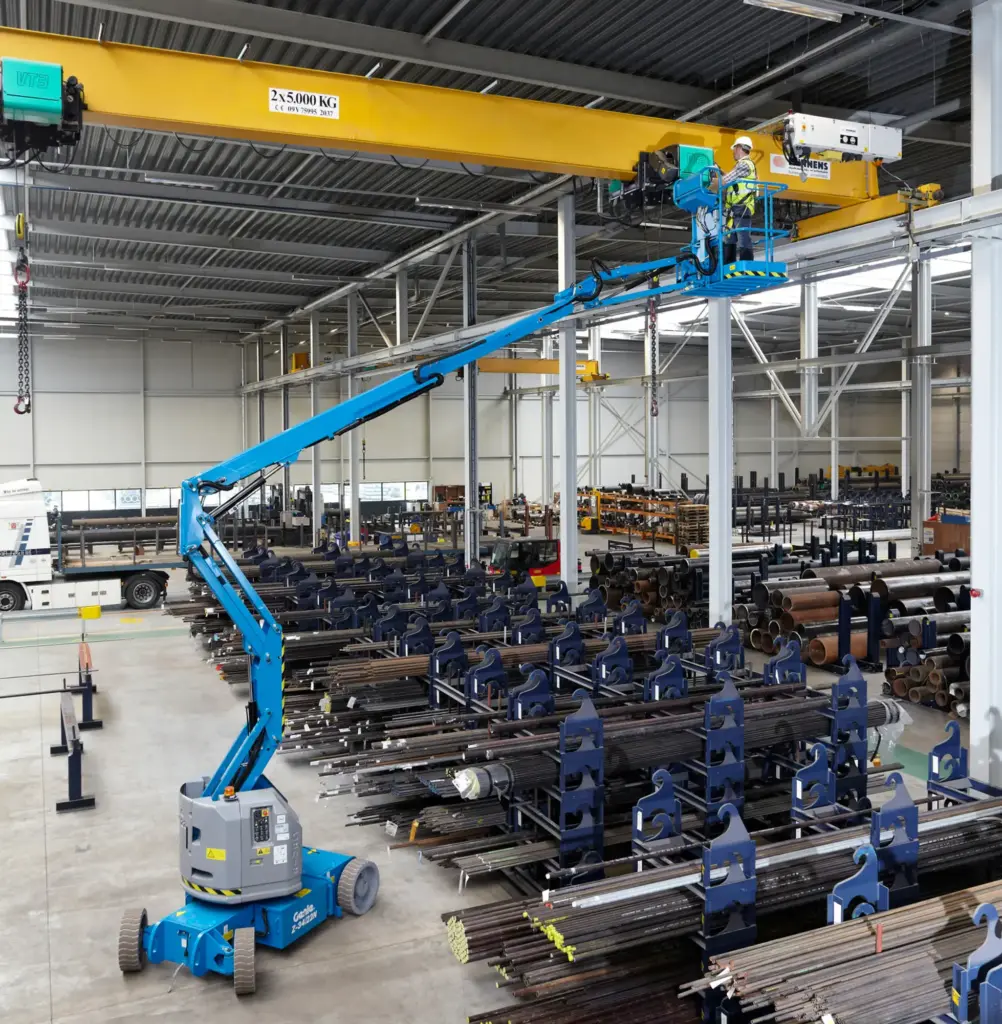

The Genie Z-34/22 N is an electric articulating boom lift designed to deliver outstanding versatility, manoeuvrability, and reach for construction, maintenance, and industrial applications. With a maximum working height of 12.52m and horizontal outreach of 6.78m, it provides excellent access to hard-to-reach areas while easily navigating around obstacles.
Its articulating boom design and compact footprint, make it ideal for working in confined spaces and sensitive environments. Combining quiet, emission-free operation with precise positioning and reliable performance, the Genie Z-34/22 N is a proven solution for safely working at height.
Features
- Solid rubber non-marking tyres
- Self-levelling platform
- Hydraulic platform rotation
- Fully proportional controls
- Thumb rocker steer
- Drive enable
- Horn
- Hour meter
- Tilt alarm
- Alarm package
- 355 deg; non-continuous turntable rotation
- Zero tailswing and front arm swing
- Sep-Ex drive system
- On-board easy to understand diagnostics
- Dual flashing beacons
| Brand | Genie |
|---|---|
| Product Code | Z34/22N |
| YR Connect Learn more | Built in |
| YR Connect Device Type | G5-SD01 | Oyster |
| Fuel Type | Battery |
| Machine Length Stowed | 5.72 m |
| Machine Height Stowed | 2.00 m |
| Machine Width Stowed | 1.19 m |
| Product Weight | 5171 kg |
| Max Limited Gradeability | 35 % |
| Working Height Max - Outdoor | 12.52 m |
| Platform Height Max - Outdoor | 10.52 m |
| Drive Mode | 2WD Electric |
| Hydraulic System Capacity | 30.3 L |
| Tilt Rating (front-to-back/side-to-side) | 3 / 1.5 ° |
| Turning Radius (Inside/Outside) | 0 / 3.15 m |
| Rated Voltage | 48 V |
| Drive Speed Stowed | 4.8 km/h |
| Drive Speed Raised | 1.0 km/h |
| Gradeability | 35 % |
| Maximum Horizontal Extension | 6.78 m |
| Ground Clearance | 130 mm |
| Platform Capacity | 227 kg |
| Platform Allowable Occupants Indoor | 2 |
| Platform Allowable Occupants Outdoor | 1 |
| Platform Size (L X W X H) | 1.42 x 0.76 x 1.10 m |
| Wheelbase | 1.88 m |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Genie Z34/22N Product Brochure | Product Brochures |
