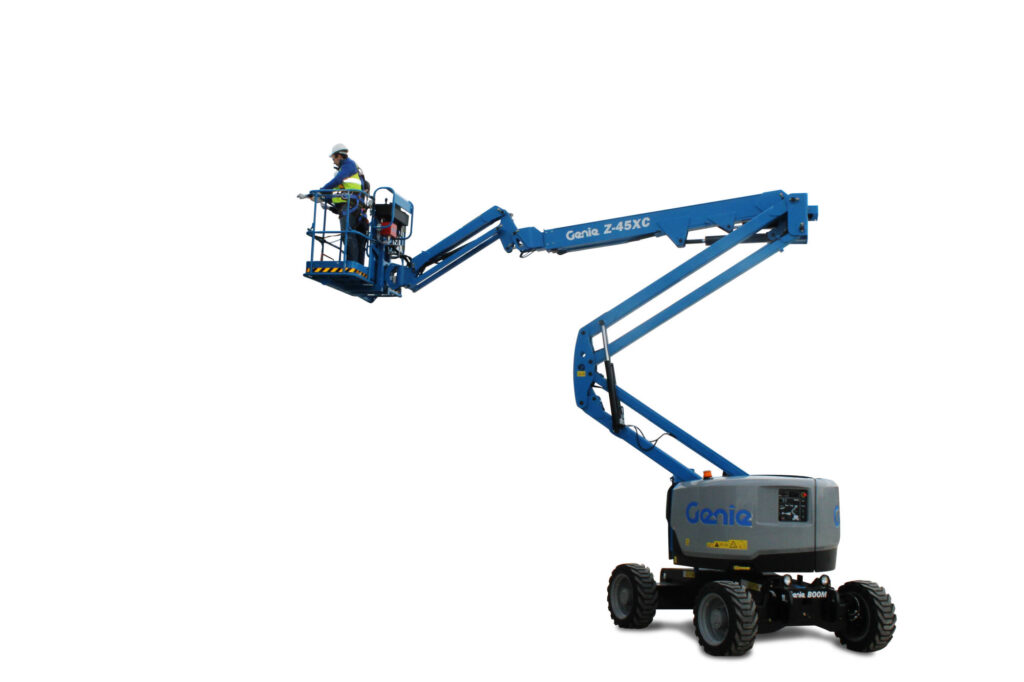

Genie Diesel Articulating Z Boom 15.87m Capacity 300/454kg

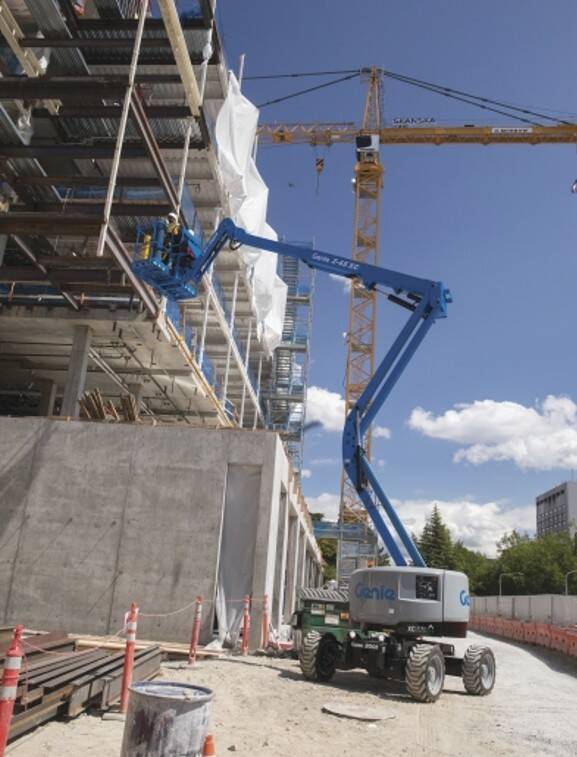

The Genie Z-45/XC is ideal for construction, maintenance, and industrial applications.

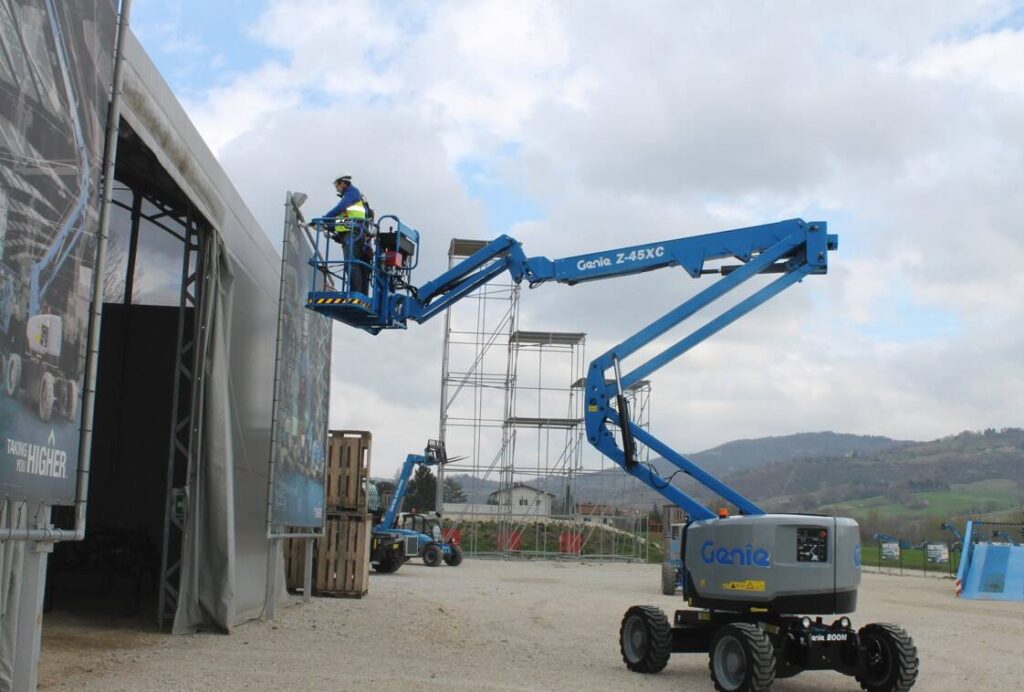

The Genie Z-45 XC is a high-capacity articulating boom lift engineered to deliver exceptional reach, versatility and lifting performance. With a maximum working height of 15.86m and horizontal outreach of 7.55m, it provides excellent access to difficult-to-reach areas while allowing operators to work efficiently around obstacles.
Featuring Genie’s Xtra Capacity (XC) design, the Z-45 XC offers dual lift capacity, enabling operators to safely lift heavier tools, materials, and multiple occupants when required. Its articulating boom configuration, compact chassis, and tight turning radius make it ideal for navigating confined workspaces and complex job sites.
Built for productivity, durability, and precise positioning, the Genie Z-45 XC delivers reliable performance and enhanced job site efficiency, making it a trusted solution for working safely at height.
Features
- 4WD
- Active oscillation
- Solid rubber non-marking
- Self-levelling platform
- 160 degree Hydraulic platform rotation
- Fully proportional controls
- Drive enable
- AC power cord to platform
- Horn
- Hour meter
- Tilt alarm
- Alarm package
- Zero tailswing and front arm swing
- Positive traction drive
- Two speed wheel motors
- Work tray
- On-board easy to understand diagnostics
- Lift Guard Contact Alarm
- Dual flashing beacons
- Dual parallelogram for vertical wall tracking
- Load sense
- Diesel engine
| Brand | Genie |
|---|---|
| Product Code | Z45/XC |
| YR Connect Learn more | Built in |
| YR Connect Device Type | EHM101-4G | Quick Connect |
| Fuel Type | Diesel |
| Machine Length Stowed | 6.66 m |
| Machine Height Stowed | 2.00 m |
| Machine Width Stowed | 2.29 m |
| Product Weight | 7394 kg |
| Max Limited Gradeability | 45 % |
| Fuel Tank Capacity | 64 L |
| Working Height Max - Outdoor | 15.86 m |
| Platform Height Max - Indoor | 13.86 m |
| Drive Mode | 4WD |
| Hydraulic System Capacity | 90.8 L |
| Tilt Rating (front-to-back/side-to-side) | 4.5 / 4.5 ° |
| Turning Radius (Inside/Outside) | 1.78 / 4.57 m |
| Engine Type | Kubota WG-1605 Dual Fuel |
| Rated Voltage | 12 V |
| Drive Speed Stowed | 7.24 km/h |
| Drive Speed Raised | 1.13 km/h |
| Gradeability | 45 % |
| Maximum Horizontal Extension | 7.55 m |
| Ground Clearance | 300 mm |
| Platform Capacity | 300 / 454 kg |
| Platform Allowable Occupants Indoor | 3 |
| Platform Allowable Occupants Outdoor | 2 |
| Platform Size (L X W X H) | 1.83 x 0.76 x 1.10 m |
| Wheelbase | 2.03 m |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Genie Z45 XC Product Brochure | Product Brochures |
This product is covered by the YR standard warranty. You can also read our return policy.
