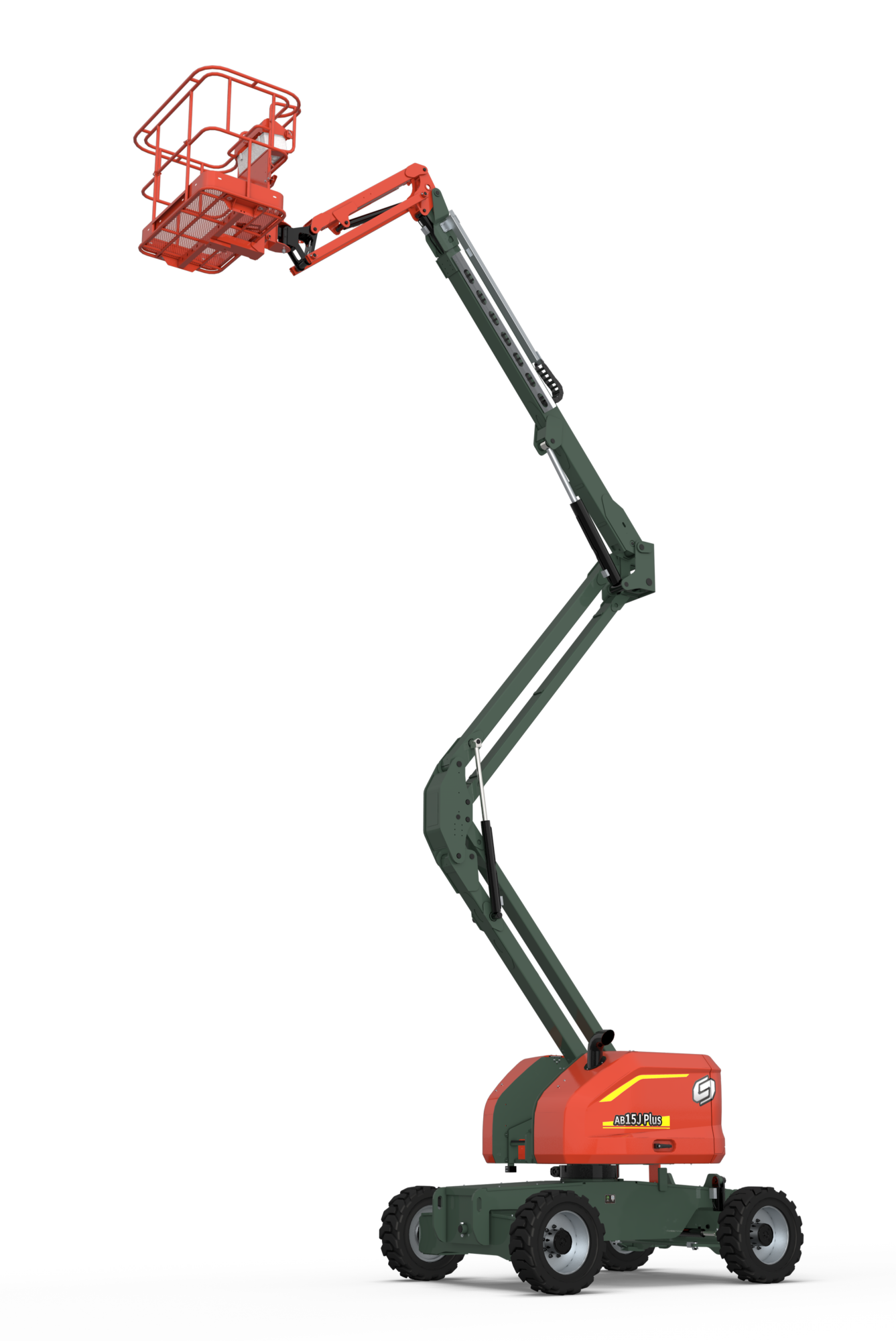

Sinoboom Diesel Articulating Boom XC 16.7m – Capacity 300kg
The AB15J PLUS is ideal for industrial facilities, infrastructure projects, utility work and agricultural applications.
This articulated jib has a maximum extra platform capacity of 300kg for up to 2 people with a gradability of up to 40%, and horizontal reach of up to 8.5M. Has a narrow width and is suited to construction sites such as installing windows, roofing and exterior finishing as well as maintenance or repair work on multi-story buildings and remote locations where electric power might not be available.
Features
- Great rough terrain performance due to active oscillating function, combined with 4 wheel drive, 40% gradeability and high ground clearance.
- Large platform capacity with room for up to 2 people and tools
- Efficient hydraulic system with function pump upgraded to piston pump for more oil flow and higher oil pressure
- Greater tilt rating and ultimate HMI experience
- Drive × Steer 4WD×2WS
- Hydraulic Platform Levelling
- Proportional control with 3 joysticks
- Tilt protection system
- Flashing beacon
- 7-in smart screen
- Automotive-grade sleeves for all pipes
- Secondary guarding device
- Telematics-ready connector
- Emergency lowering system
- Active oscillating function
- Weighing system
- Non-marking tyres
- Battery isolator
- Platform rotation function
- Max tilt to 5 degrees
- Continuous turntable rotation at 360 degrees
- Rotating warning light for safety warning
- Anti-restart protection for engine
- Horn and buzzer for safety warning
- Automatic engine shutdown in case of Malfunction
- Fault diagnostic system
- Rear position and travel confirmation
- Mechanical release for travel braking
- Rotatable engine
- Engine pre-heating
- Platform with inward swinging gate
- Tool box (for platform with inward swinging gate)
Options & Accessories
- AC power to platform
- Platform work light
- Oil cooler (engine power > or = 36kW
- Half-height guardrail (for platform with inward swinging gate)
- Solid tyre
- Manual storage box
- 1.45m platform
| Brand | Sinoboom |
|---|---|
| YR Connect Learn more | Built in |
| YR Connect Device Type | EHM101-4G | Quick Connect |
| Machine Length Stowed | 7.49 m |
| Machine Height Stowed | 2.28 m |
| Machine Width Stowed | 2.3 m |
| Product Weight | 8070 kg |
| Fuel Tank Capacity | 55 L |
| Drive Mode | 4WD X 2WS |
| Turning Radius (Inside/Outside) | 1.82 / 4.78 m |
| Standards Compliance | GB/CE/ANSI/CSA/AS/EAC |
| Engine Type | 36 kW/2600 rpm/ V2403BM-DI-CT04/Kubota// China IV |
| Drive Speed Stowed | 4.5 km/h |
| Drive Speed Raised | 1.0 km/h |
| Gradeability | 40 % |
| Ground Clearance | 370 mm |
| Platform Capacity | 300 kg |
| Platform Allowable Occupants Outdoor | 2 |
| Platform Size (L X W X H) | 1.83 m x 0.85 m x 1.1 m m |
| Wheelbase | 2.3 m |
| Max Platform Height | 14.7 m |
| Max Working Height | 16.7 m |
| Max Horizontal Outreach | 8.5 m |
| Max Up and Over Clearance | 7.3 m |
| Transport Length | 5.75 m |
| Transport Width | 2.3 m |
| Transport Height | 2.66 m |
| Turntable Rotation | 360°continuous ° |
| Platform Rotation | 180 ° |
| Tilt Rating | 5° |
| Max Allowable Side Force | 400 N |
| Tire Spec Type | 33 x 12D610 Foam-filled 33 x 12-20 solid |
| System Voltage | 12 V DC |
| Turntable Tail Swing | 0.1 m |
| Max Allowable Wind Speed | 12.5 m/s |
| Hydraulic Tank Capacity | 112 L |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Sinoboom AB15J PLUS Product Brochure | Product Brochures |
