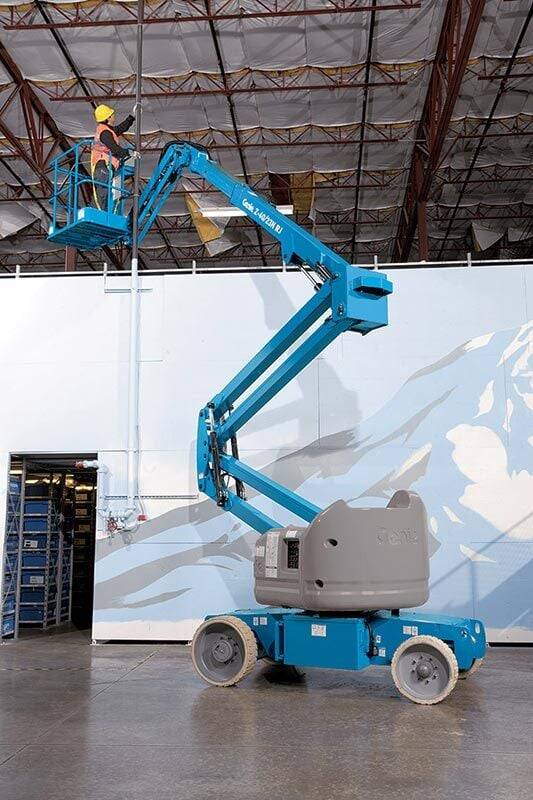

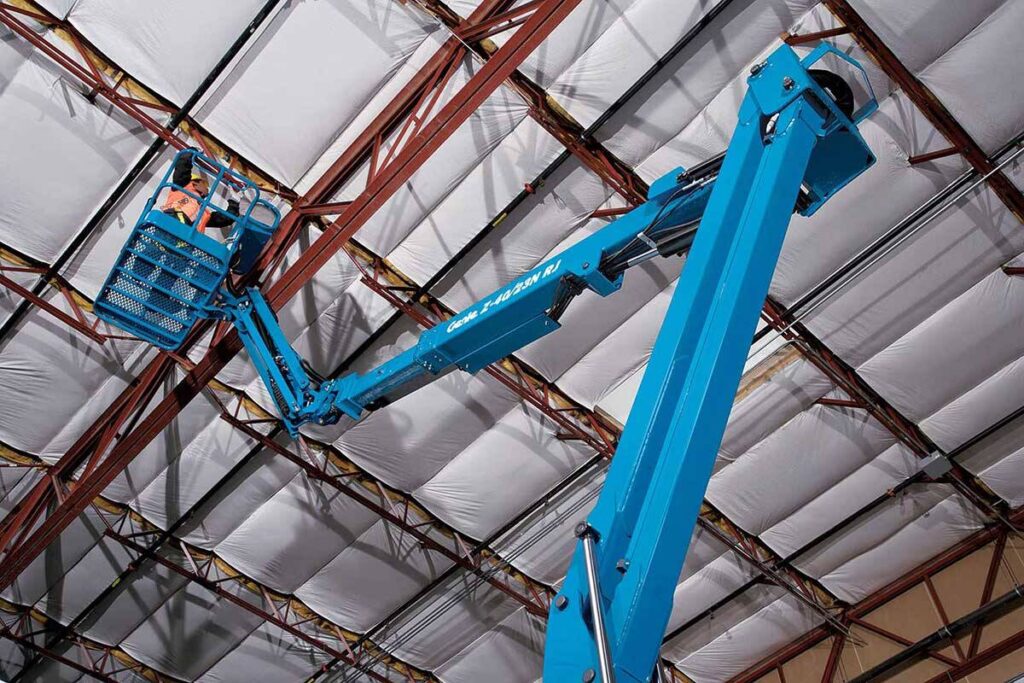

The Genie Z-40/23 N RJ is an electric articulating boom lift with a rotating jib, designed to deliver outstanding versatility, manoeuvrability, and outreach for construction, maintenance, and industrial applications. With a maximum working height of 13.72m and horizontal outreach of 7.92m, it provides excellent access to hard-to-reach areas while easily navigating around obstacles and is a proven solution for safely working at height
Its articulating boom design, compact footprint, zero tailswing, and rotating jib make it ideal for working in confined spaces and sensitive environments where precise positioning is required.
Features
- Solid rubber non-marking tyres
- 2WD Electric AC
- Self-levelling platform
- Hydraulic platform rotation
- Fully proportional controls
- Thumb rocker steer
- Drive enable
- Horn
- Hour meter
- Tilt alarm
- Alarm package
- Hydraulic filter condition monitor
- 355 deg; non-continuous turntable rotation
- Variable speed high efficiency hydraulic power unit
- Traction control
- On-board easy to understand diagnostics
- Dual flashing beacons
| Brand | Genie |
|---|---|
| Product Code | Z40/23NRJ |
| YR Connect Learn more | Built in |
| YR Connect Device Type | G5-SD01 | Oyster |
| Fuel Type | Battery |
| Machine Length Stowed | 5.99 m |
| Machine Height Stowed | 2.00 m |
| Machine Width Stowed | 1.50 m |
| Product Weight | 6640 kg |
| Max Limited Gradeability | 35 % |
| Working Height Max - Outdoor | 14.32 m |
| Platform Height Max - Outdoor | 12.32 m |
| Drive Mode | 2WD Electric |
| Hydraulic System Capacity | 30 L |
| Tilt Rating (front-to-back/side-to-side) | 3 / 1.5 ° |
| Turning Radius (Inside/Outside) | 0 / 3.05 m |
| Rated Voltage | 48 V |
| Drive Speed Stowed | 4.8 km/h |
| Drive Speed Raised | 1.0 km/h |
| Gradeability | 35 % |
| Maximum Horizontal Extension | 6.91 m |
| Ground Clearance | 130 mm |
| Platform Capacity | 227 kg |
| Platform Allowable Occupants Indoor | 2 |
| Platform Allowable Occupants Outdoor | 1 |
| Platform Size (L X W X H) | 1.42 x 0.76 x 1.10 m |
| Wheelbase | 2.01 m |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Genie Z-40/23 N RJ Articulated Boom Product Brochure | Product Brochures |
