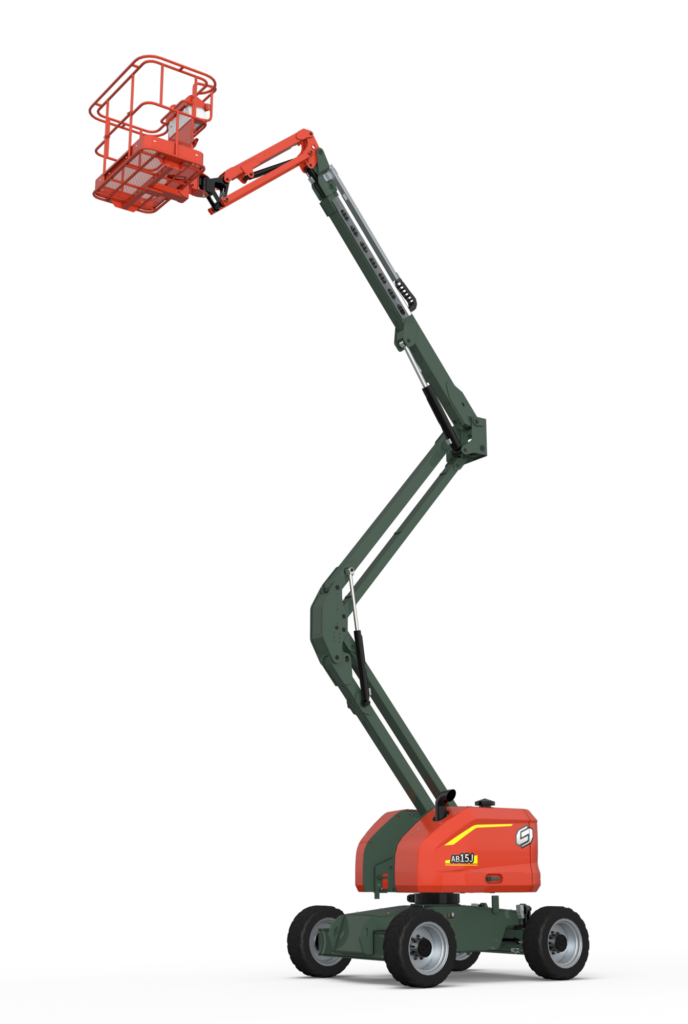

Sinoboom Diesel Articulating Boom 16.7m – Capacity 250kg
The AB15J is ideal for industrial facilities, infrastructure projects, utility work and agricultural applications
This zero tail swing diesel articulated jib has a maximum platform capacity of 250kg with a gradability of up to 30% at 2WD and 40% at 4WD, and horizontal reach of up to 8.5M. Has a narrow width and is ideal for construction sites and other remote locations where electric power might not be available. Is also useful for installing windows, roofing and exterior finishing as well as maintenance or repair work on multi-story buildings.
Features
- Narrow width with zero tail swing
- The working platform can be lifted and lowered to any position without the need to operate a second arm
- The simple linkage mechanism design and hydraulic levelling are reliable during operation
- 3 joysticks with variable proportional control, accuracy in reaching the operation target
- Max Working Height 16.7 m
- Max Platform Height 14.7 m
- Max Horizontal Reach 8.5 m
- Max Up and Over Clearance 7.2m
- Length-Stowed 7.35 m
- Width-Stowed 2.26 m
- Height-Stowed 2.22 m
- Wheelbase 2.03 m
- Ground Clearance 0.32m
- Platform Size (L×W×H) 1.83 m×0.85 m×1.1 m
- Capacity 250 kg
- Max Platform Occupants 2 Persons
- Drive Speed (Stowed) 0～5 km/h 4WD / 0～7 km/h 4WD
- Drive Speed (Raised) 0～1.1 km/h
- Gradeability 30% 2WD / 40% 4WD
- Turntable Rotation 355o non-continuous
- Platform Rotation 160o
- Tilt Rating 5o
- Turning Radius (Inside/Outside) 1.8 m/4.5 m
- Turntable tail swing 0m
- Max Allowable Side Force 400 N
- Max allowable wind speed 12.5 m/s
- Tire Spec/Type 315/55D20/foam filled
- Drive × Steer 4WD×2WS
- Hydraulic Tank Capacity 90L
- Fuel Tank Capacity 55L
- Deutz D2011L31 36.3 kW
- System Voltage 12V DC
- 4 WD × 2 WS
- Hydraulic Platform Levelling
- Proportional control with 3 joysticks
- Tilt protection system
- Flashing beacon
- 7-in display screen
- Automotive-grade sleeves for all pipes
- White noise alarm
- Secondary guarding device
- Telematics-ready connector
- Emergency lowering system
- Oscillating function
- Half mesh (for platform swing gate)
- Weighing system
- Non-marking tyres
- 1.83m platform
- Battery isolator
- 160 deegree Platform rotation
- Max tilt to 5 degrees
- 4-wheel brake
Options & Accessories
- AC power to platform
- Platform work light
- Glazier kit (for platform with swinging gate)
- 1.45m platform
| Brand | Sinoboom |
|---|---|
| Product Code | AB15J |
| YR Connect Learn more | Built in |
| YR Connect Device Type | EHM101-4G | Quick Connect |
| Fuel Type | Diesel |
| Machine Length Stowed | 7.35 m |
| Machine Height Stowed | 2.22 m |
| Machine Width Stowed | 2.26 m |
| Product Weight | 7080 kg |
| Fuel Tank Capacity | 55 L |
| Drive Mode | 4WD X 2WS |
| Turning Radius (Inside/Outside) | 1.8 / 4.5 m |
| Standards Compliance | CE/AS/EAC |
| Engine Type | 36.3 kW/2800 rpm Deutz/D22011L3I/EU Stage 3A, EPA Tier 3 |
| Drive Speed Stowed | 5 km/h |
| Drive Speed Raised | 1.1 km/h |
| Gradeability | 30 (2WD) 40 (4WD) % |
| Ground Clearance | 320 mm |
| Platform Capacity | 250 kg |
| Platform Allowable Occupants Outdoor | 2 |
| Platform Size (L X W X H) | 1.83 m x 0.85 m x 1.1 m m |
| Wheelbase | 2.03 m |
| Max Platform Height | 14.7 m |
| Max Working Height | 16.7 m |
| Max Horizontal Outreach | 8.5 m |
| Max Up and Over Clearance | 7.2 m |
| Transport Length | 7.35 m |
| Transport Width | 2.26 m |
| Transport Height | 2.22 m |
| Turntable Rotation | 355° Non-continuous ° |
| Platform Rotation | 160 ° |
| Tilt Rating | 5° |
| Max Allowable Side Force | 400 N |
| Tire Spec Type | 315/55D20 (Foam-filled) |
| System Voltage | 12 VDC |
| Max Allowable Wind Speed | 12.5 m/s |
| Hydraulic Tank Capacity | 90 L |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Sinoboom AB15J Product Brochure | Product Brochures |
