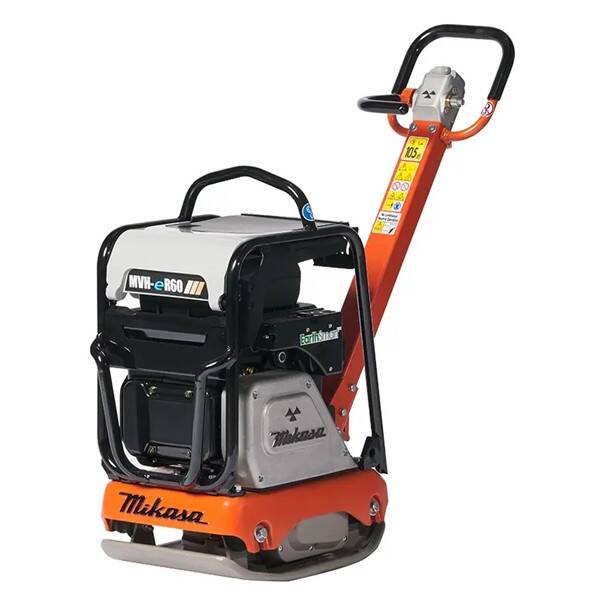

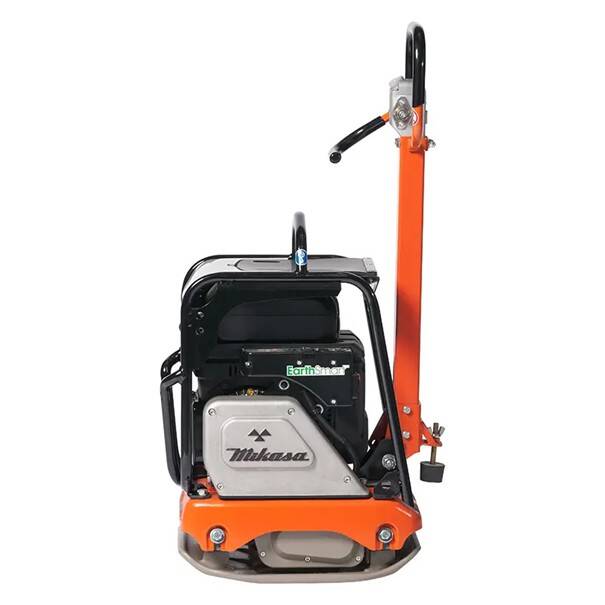

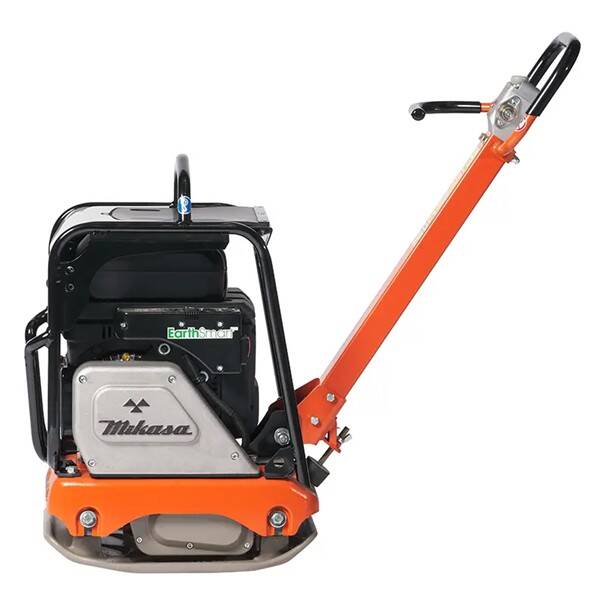

Mikasa 81kg Battery Powered Reverse Plate Compactor – 12kN
The Mikasa MVHeR60 is a zero emission unit ideally suited for civil construction works, drainage contractors and the rental industry.
Excludes battery and charger
Mikasa Reversible Plate Compactors set the standard for efficient compaction of sand, gravel and cohesive soils in trenches and large construction projects. They offer high-compaction capacity, superior travel speeds and feature fully hydraulic direction control for easy direction change. Mikasa’s battery powered compaction equipment range features a Honda eGX-Series electric motor which is powered by an interchangeable lithium-ion battery pack, capable of rapidly charging to 80% capacity in only 60 minutes.
These zero emission and reduced noise level machines are a great alternative to the engine powered equivalents, especially when operating in noise and fume restricted environments. Mikasa Reversible Plate Compactors are ideally suited for civil construction works, drainage contractors and the rental industry.
Features

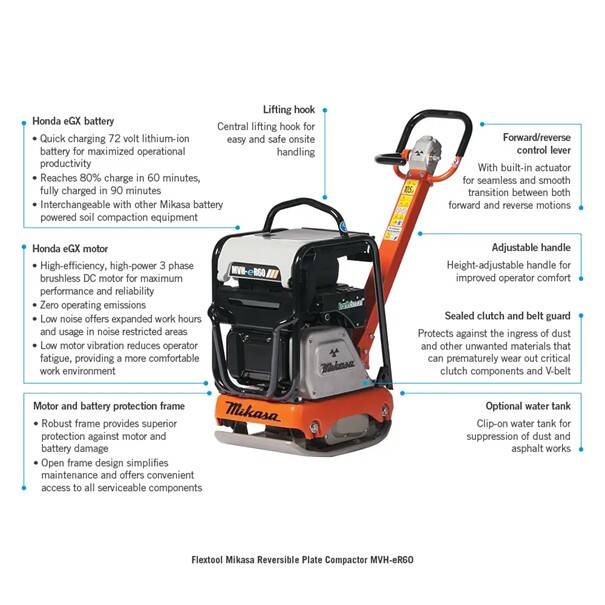

- The forward/reverse control lever comes with a built-in actuator for seamless and smooth transition between both forward and reverse motions

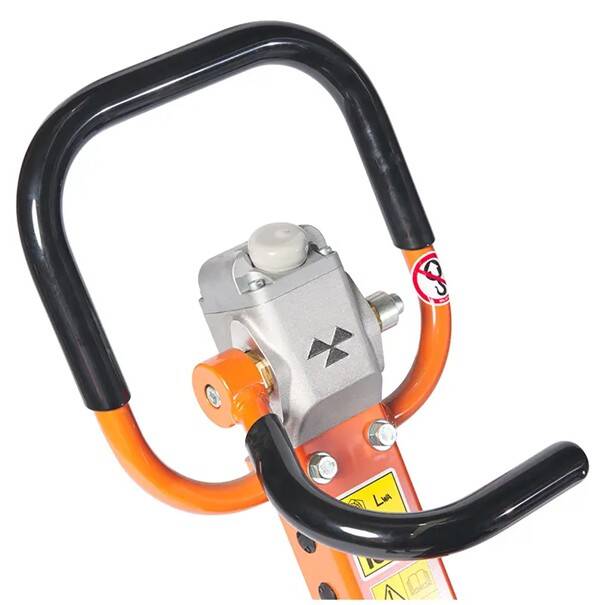

- Height adjustable handle for improved operator comfort

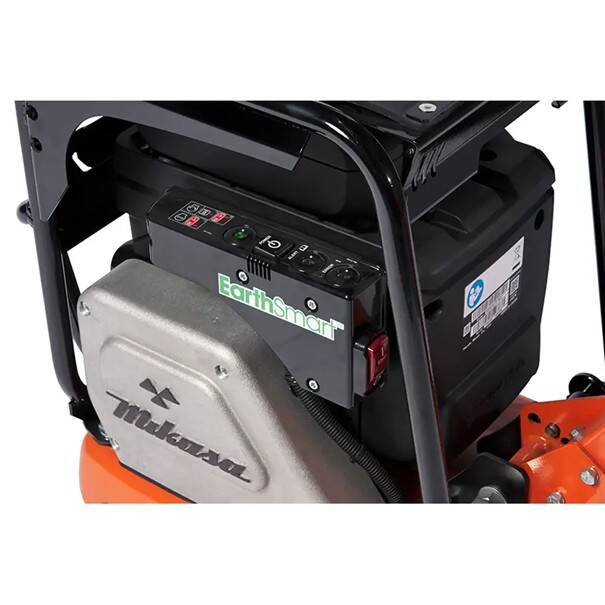

- Robust motor and battery protection frame provides superior protection against motor and battery damage and the open frame design simplifies maintenance by offering convenient access to all serviceable components
- The sealed clutch and belt guard protects against the ingress of dust and other unwanted materials that can prematurely wear out critical clutch component and V-belt
- Optional clip-on water tank assists with the suppression of dust and asphalt works
- Central lifting hook for easy and safe onsite handling

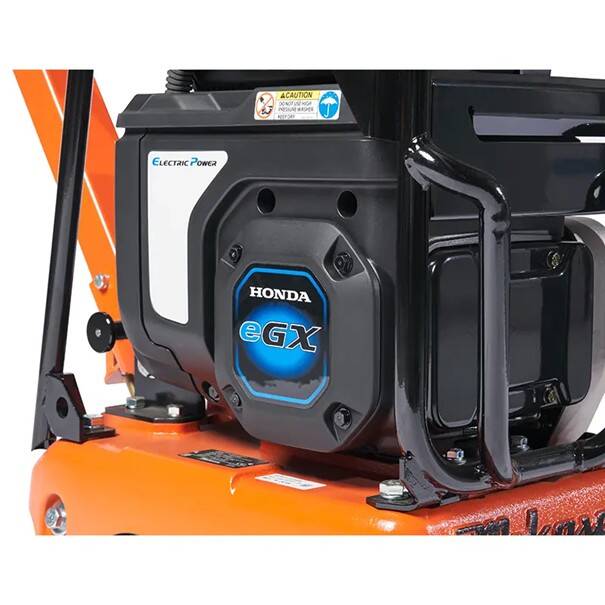

- Honda eGX motor is a high-power 3 phase brushless DC motor for maximum performance and reliability

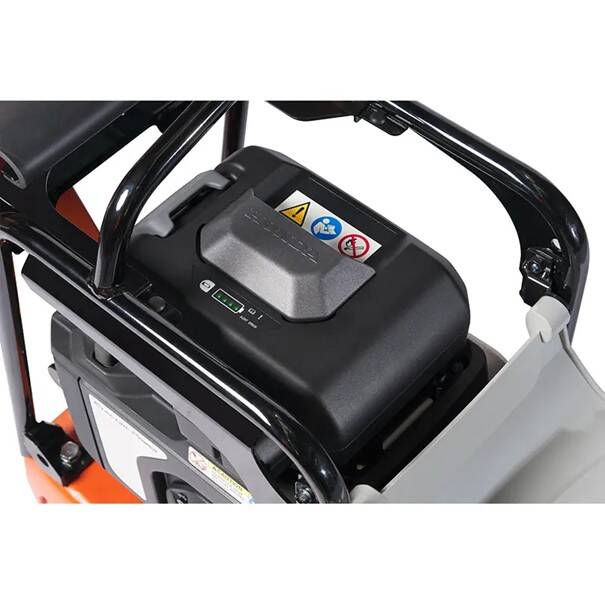

- Honda eGX 72 volt lithium-ion battery is quick charging and interchangeable with other Mikasa battery powered soil compaction equipment
- Zero operating emissions
- 3 Year Mikasa product warranty (body only)
- 2 Year Honda battery warranty
| Brand | Mikasa |
|---|---|
| YR Connect Learn more | Built in |
| YR Connect Device Type | G5-SD01 | Oyster |
| Fuel Type | Battery |
| Compaction Sensor "Compas II" | No |
| Vibration Absorbing System (VAS) Handle | No |
| Water Tank | Opt |
| Water Tank Capacity | 8.5 L |
| Lifting Hook | |
| Cart | Opt |
| Forward/Reverse Travel Lever | |
| Integrated Vibrating Plate | No |
| Monocoque Structure | No |
| Self-Locking System | No |
| Cyclone Pre-Cleaner | No |
| Tacho Hour Meter | No |
| Removable Extension Plates | No |
| Product Dimension (Length) | 920 mm |
| Product Dimension (Width) | 350 mm |
| Product Dimension (Height) | 915 mm |
| Power Source: Brand | Honda |
| Power Source: Model | eGX |
| Power Source: Max Output | 2.4 kW |
| Power Source: Max Output | 3.3 HP |
| Product Weight | 82 kg |
| Plate Size (Width) | 350 mm |
| Plate Size (Length) | 480 mm |
| Vibrating Frequency | 108 Hz |
| Vibrating Frequency | 6500 vpm |
| Centrifugal Force Max | 12 kN |
| Centrifugal Force Max | 1225 kgf |
| Max Travel Speed | 24 m/min |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Mikasa Reversible Plate Compactor Brochure | Product Brochures |
This product is covered by the YR standard warranty. You can also read our return policy.
All-in-one equipment servicing and data-tracking platform
YR Connect is your all-in-one equipment servicing and data tracking platform — built for New Zealand’s construction sector. It helps reduce downtime, increase visibility, prevent theft, improve safety and extend the lifespan of every machine in your fleet.
From excavators to plate compactors, YR Connect gives you total visibility, simplifies the maintenance process, optimises machine use and gives you maximum peace of mind.
Each YR Branch has a full service workshop and a comprehensive inventory of spare parts, for quality equipment that is built on trust.
We are proud of the back-up service we offer to our customers in New Zealand. The importance of stocking genuine spare parts for all the equipment we supply is a high company priority. Each branch also has full service workshop facilities with qualified mechanics ready to work on your equipment. We also have mobile mechanic capability.
