Makinex 20 kVA Hybrid Power System – Single Skid

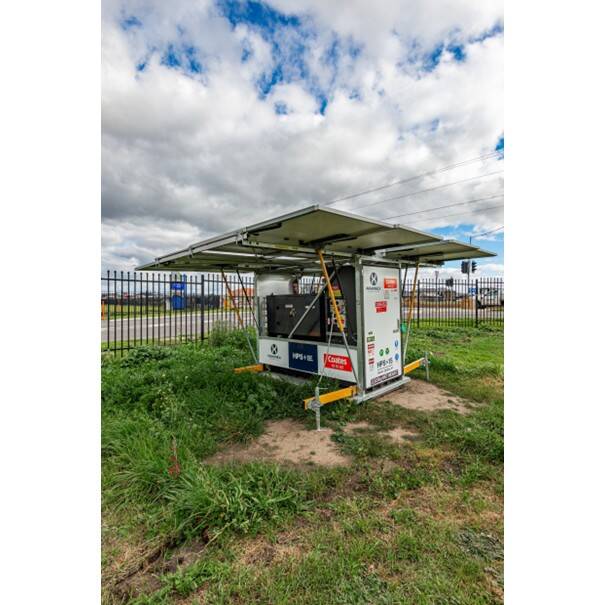

The HPS20 is ideal for construction sites, mining operations, agricultural applications and other remote environments where dependable power is essential. By prioritising renewable energy and only using the generator when required, the system helps reduce diesel usage, lower carbon emissions and support more sustainable site operations without compromising performance.
The Makinex HPS20 Hybrid Power System delivers reliable, off-grid power while significantly reducing fuel consumption, emissions and operating costs. Delivering 20kW of rated power output and 30kWh of battery energy storage, the HPS20 intelligently manages energy production and storage through a combination of solar generation, lithium battery storage and an integrated backup generator to provide continuous power day and night. It integrates 4kW of peak solar production, a 30kWh lithium battery bank, and a backup diesel generator with a 400L fuel tank, intelligently managing loads to reduce weekly fuel consumption by up to 300-400 litres
The HPS20 is ideal for construction sites, mining operations, agricultural applications and other remote environments where dependable power is essential. By prioritising renewable energy and only using the generator when required, the system helps reduce diesel usage, lower carbon emissions and support more sustainable site operations without compromising performance.
Features

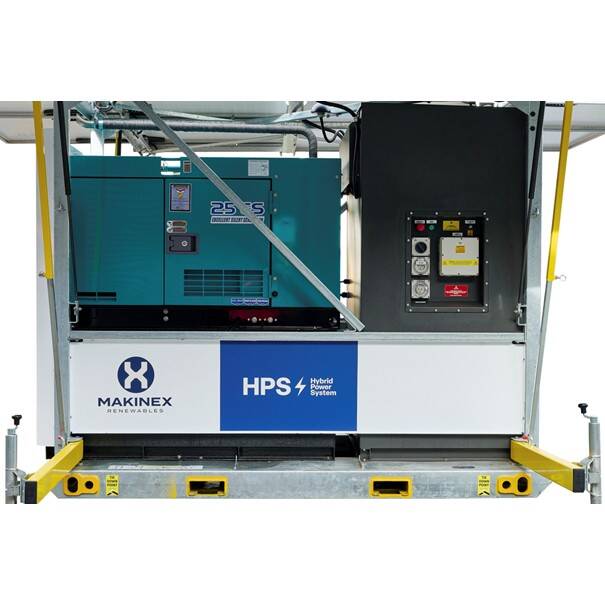

- Backup: Integrated diesel generator with a large 400L fuel tank for extended poor weather or excess power needs
- Skid Type: Single-skid, rapid-deployable unit
- Transport: Includes forklift pockets, tie-down points, and rated lifting lugs for crane transport

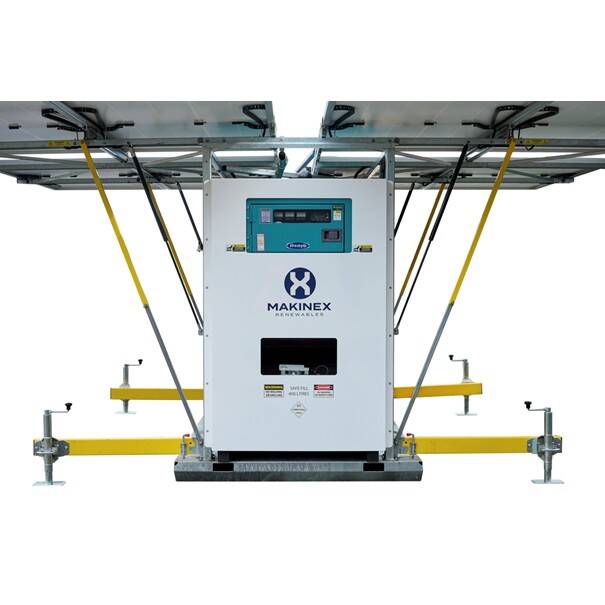

- Frame: Durable galvanised folding design for easier storage and transport
- Wind Rating: Certified up to 38 m/sec (136 km/h) when fully deployed with outriggers engaged
- Interface: Schneider HMI control screen for monitoring generator run hours, fuel levels, battery state of charge (SOC), and solar input
- Telecommunications: Built-in 4G connectivity for cloud monitoring, system alarms, and full remote programming
- Tracking: Integrated GPS tracking and cellular coverage
- Management: Customisable programs for generator run times, quiet times, and intelligent load prioritization

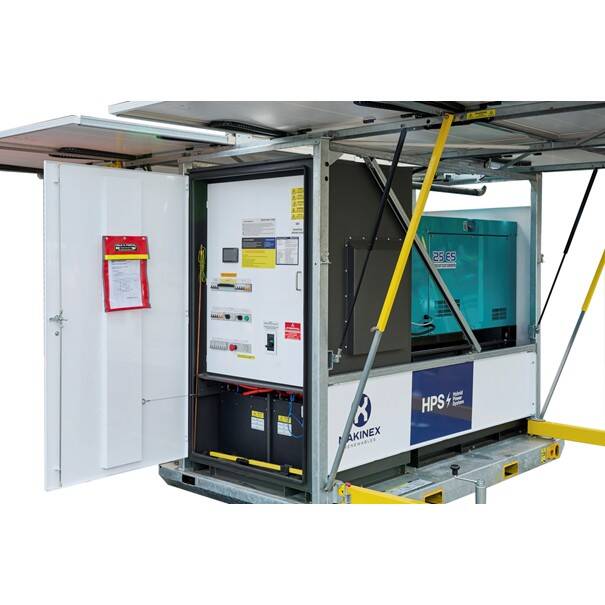

- Safety: Features an air-conditioned electrical enclosure, earth leakage detection, an emergency stop, and remote access diagnostic capabilities
| Brand | Makinex |
|---|---|
| YR Connect Learn more | Built in |
| YR Connect Device Type | EHM101-4G | Quick Connect |
| Fuel Type | Diesel, Battery |
| Product Dimension (Length) | 2450 mm |
| Product Dimension (Width) | 1350 mm |
| Product Dimension (Height) | 1270 mm |
| Frequency | 50 Hz |
| Rated Output Continuous | 20 kVA |
| Product Weight | 2600 kg |
| Fuel Tank Capacity | 400 L |
| Rated Voltage | 230 / 400 V |
| Electrical Phases | Single, Three |
| Battery Capacity | 30 kWh |

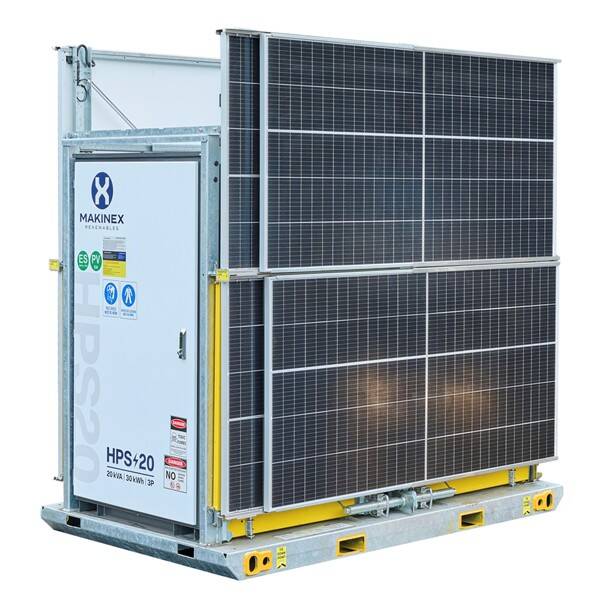

| Solar Capacity | 4 kWp |
Opt = Optional extra
| Resource | Type | View/Download |
|---|---|---|
| Makinex Renewables Range Brochure | Product Brochures |
