Makinex 45kVA Hybrid Power System – Double Skid
The HPS is designed to capture, store and produce clean, sustainable energy for off grid applications. Ideal for mining, construction and agriculture applications, it provides reliable performance in demanding conditions.
The Makinex HPS45 Hybrid Power System delivers reliable, high-capacity off-grid power while significantly reducing fuel consumption, emissions and operating costs. Delivering 45kW of rated power output and 60kWh of battery energy storage, the HPS45 intelligently manages energy production and storage through a combination of solar generation, lithium battery storage and an integrated backup generator to provide continuous power day and night. The system combines solar panels, lithium-ion batteries, and a backup diesel generator to deliver continuous, clean, and quiet off-grid power.

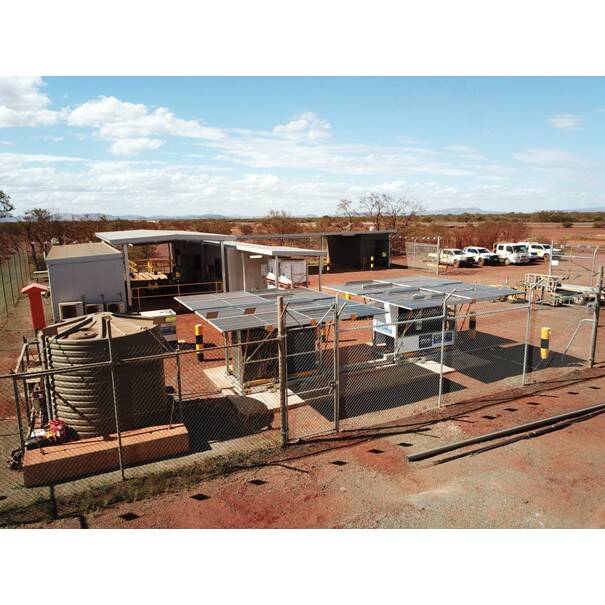

The HPS45 features a practical double-skid configuration, separating the battery and control systems from the generator and fuel tank for efficient transport, deployment and operation on site. Ideal for larger construction compounds, mining operations, agricultural applications and other remote environments with greater energy demands, the HPS45 helps reduce diesel usage, lower carbon emissions and support more sustainable site operations without compromising performance or reliability.
Features
- Fuel Capacity: 400 to 500 litres with an estimated fuel consumption of 7 L/hr at 75% load in engine-only mode.
- Noise Level: 63 dBA measured at 7 meters.
- Design: Double-skid system featuring separate battery/control skids and generator/tank skids that plug together with multi-pin comms cables.
- Weight: Dry weight of 1820 kg for the generator skid and 2220 kg for the battery skid.
| Brand | Makinex |
|---|---|
| YR Connect Learn more | Built in |
| YR Connect Device Type | EHM101-4G | Quick Connect |
| Fuel Type | Diesel, Battery |
| Product Dimension (Length) | 2500 mm |
| Product Dimension (Width) | 1520 mm |
| Product Dimension (Height) | 2530 mm |
| Frequency | 50 Hz |
| Rated Output Continuous | 45 kVA |
| Product Weight | 4440 kg |
| Fuel Tank Capacity | 500 L |
| Rated Voltage | 230 / 400 V |
| Electrical Phases | Three |
| Battery Capacity | 60 kWh |
| Solar Capacity | 8 kWp |
Opt = Optional extra
